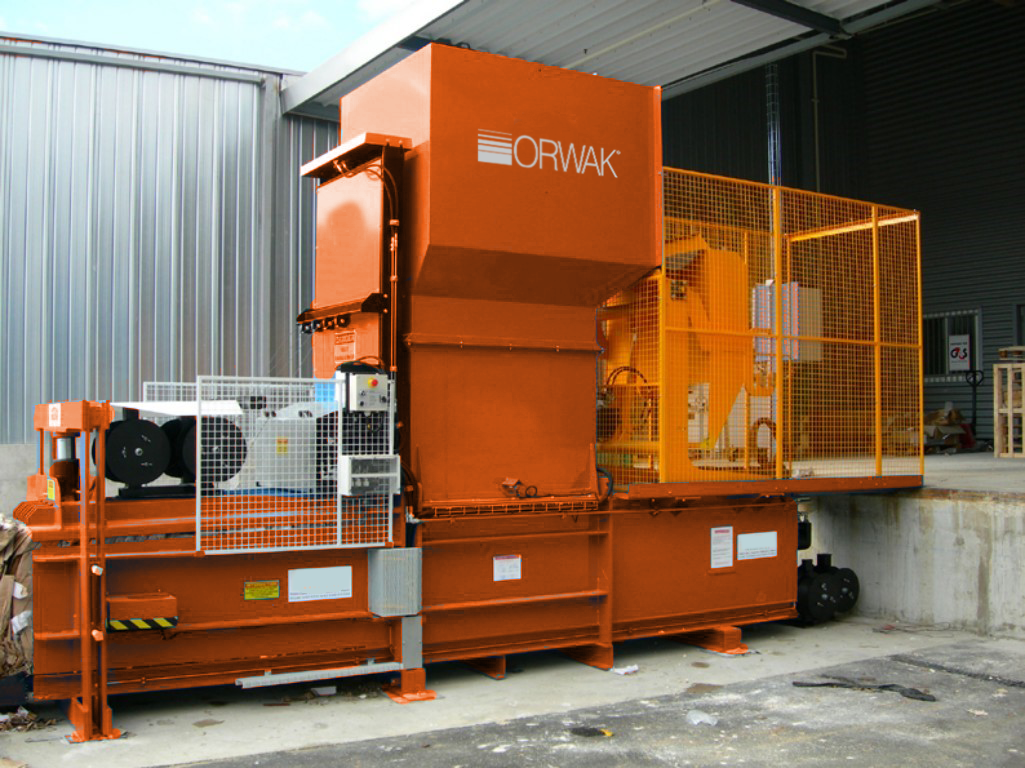

ORWAK HORIZONTAL 450 AT-500 S AT
ORWAK HORIZONTAL 450 AT-500 S AT — automatic 45–50 t horizontal balers. Cardboard bales up to 450–600 kg.
Compaction force
45 / 50 t
Bale weight
Cardboard 450–500 / 400–600 kg
Feed opening
1400 × 1000 mm
Motor
7,5 / 15 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 450 AT and 500 S AT — fully automatic horizontal balers for larger cardboard and plastic streams requiring a compact industrial solution and continuous feeding.
Key benefits
- 45 or 50 t compaction force;
- automatic tying with four wires;
- adjustable bale length;
- automatic start;
- various feeding solutions;
- cardboard bales up to 600 kg.
Kada rinktis 450 AT arba 500 S AT?
Abu modeliai skirti didesniems, nuolatiniams kartono ir kitų tinkamų medžiagų srautams, kai reikalingas automatinis presavimas ir surišimas, bet svarbūs kompaktiški įrangos matmenys. Tiksli konfigūracija priklauso nuo padavimo būdo ir atliekų kiekio. Palyginkite su 25–40 AT and 500 AT.
How it works
Waste is fed continuously into the hopper. The baler automatically compacts it and ties each bale with four wires at the set length. The 500 S AT offers higher hourly throughput.
Technical specifications
| Specification | 450 AT | 500 S AT |
|---|---|---|
| Compaction force | 45 t | 50 t |
| Feed opening | 1400 × 1000 mm | 1400 × 1000 mm |
| Feed volume | 1,10 m³ | 1,10 m³ |
| Motor | 7,5 kW | 15 kW |
| Cycles | 1,5–2/min. | 2,5/min. |
| Channel cross-section | 1000 × 800 mm | 1000 × 800 mm |
| Machine weight | 6500 kg | 7000 kg |
| Loading throughput | 50 m³/h | 100 m³/h |
| Tying | 4 wires, Ø3.2 mm | 4 wires, Ø3.2 mm |
| Bale dimensions | 1000 × 800 × 800–2150 mm | 1000 × 800 × 800–2150 mm |
| Cardboard bale weight | 450–500 kg | 400–600 kg |
