ORWAK WASTE MANAGEMENT EQUIPMENT

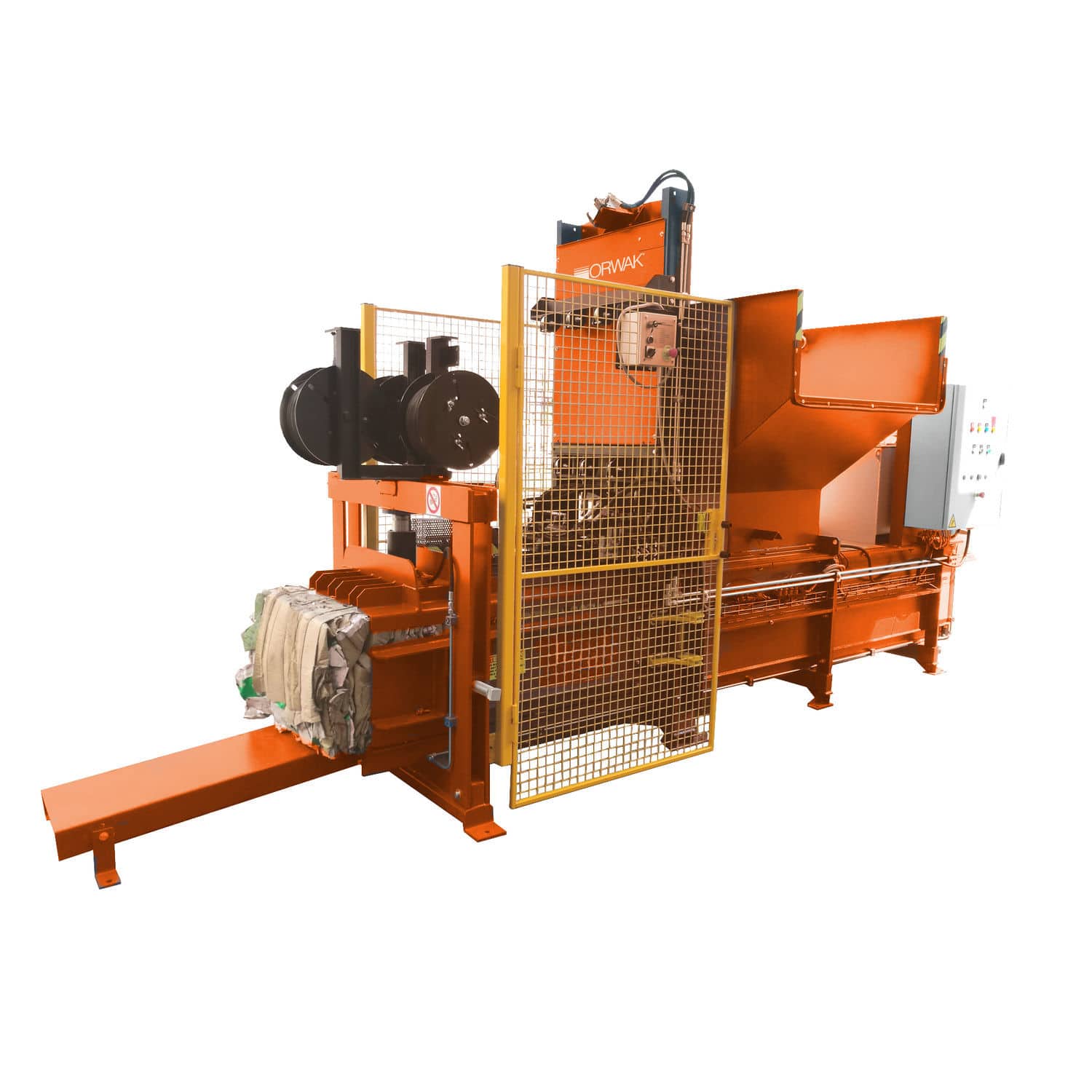

ORWAK HORIZONTAL 25-40 AT
ORWAK HORIZONTAL 25-40 AT — compact, fully automatic 25 and 40 t balers. Cardboard bales up to 300 or 400 kg.
Compaction force
25 / 40 t
Bale weight
Cardboard up to 300 / 400 kg
Feed opening
1180 × 650 mm
Motor
15 / 22 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 25-40 AT — two compact, fully automatic horizontal balers for larger cardboard, paper and PET streams in limited space.
Key benefits
- 25 or 40 t compaction force;
- automatic photocell start;
- automatic tying;
- adjustable bale length;
- compact dimensions;
- various feeding methods.
Kam tinka 25–40 AT serija?
Šiuos automatinius presus verta lyginti, kai kartono ar kitų tinkamų perdirbamų atliekų susidaro daugiau, tačiau patalpų plotas ribotas. Sprendžiant tarp 25 ir 40 t modelių reikia įvertinti faktinį srautą ir padavimo organizavimą. Jei poreikis mažesnis, peržiūrėkite 15 AT; didesnėms sistemoms – 450 AT / 500 S AT.
How it works
Waste is continuously fed into the hopper; a photocell starts the cycle, and at the set length the bale is automatically tied with three wires. The 40 AT provides greater force and a faster cycle.
Technical specifications
| Specification | 25 AT | 40 AT |
|---|---|---|
| Compaction force | 25 t | 40 t |
| Feed opening | 1180 × 650 mm | 1180 × 650 mm |
| Feed volume | 0,58 m³ | 0,58 m³ |
| Motor | 15 kW | 22 kW |
| Cycles | 4/min. | 5/min. |
| Channel cross-section | 700 × 700 mm | 700 × 700 mm |
| Machine weight | 5200 kg | 5300 kg |
| Loading throughput | 90 m³/h | 100 m³/h |
| Tying | 3 wires, Ø2.7 mm | 3 wires, Ø2.7 mm |
| Bale dimensions | 700 × 700 × 800–1400 mm | 700 × 700 × 800–1400 mm |
| Cardboard bale weight | 100–300 kg | 100–400 kg |
Specifications from the official ORWAK HORIZONTAL 25-40 AT datasheet.
