ORWAK WASTE MANAGEMENT EQUIPMENT

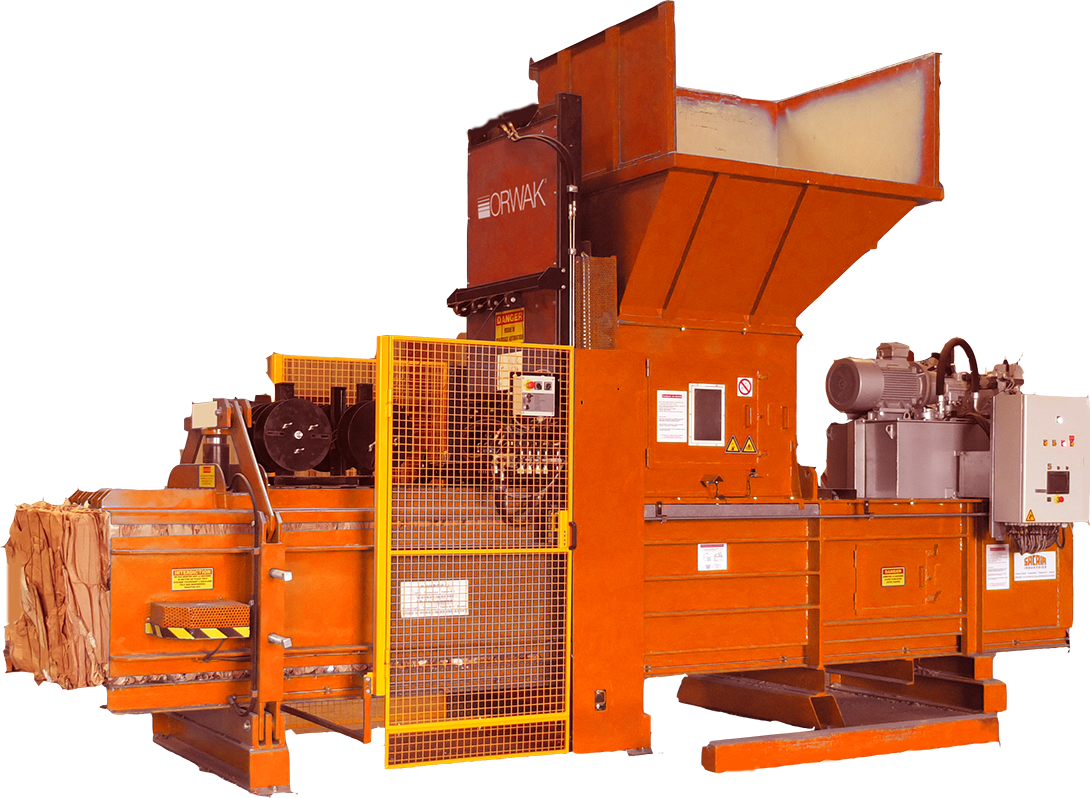

ORWAK HORIZONTAL 500 AT
ORWAK HORIZONTAL 500 AT — a fully automatic horizontal baler for large cardboard and other recyclable material streams. Compaction force of 50–60 t, throughput of 2.5–4.5 t/h and cardboard bales of 400–600 kg.
Compaction force
50 t · 60 t configuration
Bale weight
Cardboard 400–600 kg
Feed opening
1400 × 1000 mm
Motor
15 / 22 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 500 AT — a fully automatic horizontal baler for centralised handling of larger recyclable streams. Designed for continuous feeding, automatic compaction and bale tying.
Key benefits
- fully automatic operating cycle;
- 50 t standard compaction force; 60 t configuration available;
- 2.5–4.5 t/h throughput depending on material density and configuration;
- adjustable bale length;
- automatic tying with four wires;
- vertical or horizontal tying available;
- various feeding methods — conveyor, bin lifter, pneumatic transport or manual feeding.
Who is it for?
500 AT suits logistics centres, retail, manufacturing, warehouses and recyclers with continuous streams where vertical balers require too much operator time.
Ar būtinas automatinis horizontalus presas?
Ne visada. Jei kartonas presuojamas atskiromis partijomis, o svarbiausia sutalpinti stambias dėžes, verta palyginti vertikalų ORWAK POWER 3820 su 1500 mm pločio pakrovimo anga. HORIZONTAL 500 AT labiau tinka nuolatiniam atliekų padavimui ir automatiniam ryšulių surišimui. Užklausoje nurodykite atliekų kiekį, numatomą padavimo būdą ir turimą vietą.
Realus įrengimo pavyzdys Lietuvoje
STRAPAS įgyvendino ORWAK HORIZONTAL 500 AT preso su padavimo konvejeriu projektą IKI logistikos centre. Projekto aprašyme ir nuotraukose galima pamatyti, kaip organizuotas atliekų padavimas, presavimas ir surištų ryšulių paruošimas.
How it works
Waste is continuously fed into the hopper manually, by bin lifter, pneumatic transport or conveyor. A photocell automatically starts the cycle, compressing material in the channel.
At the set bale length, four wires automatically tie the bale, which is then ejected. Bale length is adjustable to suit the material and transport requirements.
Technical specifications
| Compaction force | 50 t; 60 t configuration available |
|---|---|
| Feed opening | 1400 × 1000 mm |
| Feed volume | 1,12 m³ |
| Motor | 15 / 22 kW |
| Surface pressure | 6,25 / 7,5 kg/cm² |
| Cycles | 2 / 3 cycles per minute |
| Baling channel | 1000 × 800 mm |
| Oil tank capacity | 400 / 500 l |
| Machine dimensions excluding bale outlet (L × W × H) | 7700 × 2070 × 3450 mm |
| Machine weight | 8500–9000 kg |
| Volumetric throughput | 80–150 m³/h |
| Throughput by material density | 2,5–4,5 t/h |
| Automatic tying | 4 wires, Ø3.2 mm |
| Bale dimensions | 1000 × 800 × 800–2150 mm, adjustable length |
| Cardboard bale weight | 400–600 kg, depending on bale length and material |
Specifications from the official ORWAK HORIZONTAL 500 AT datasheet. Official ORWAK datasheet.
