ORWAK WASTE MANAGEMENT EQUIPMENT

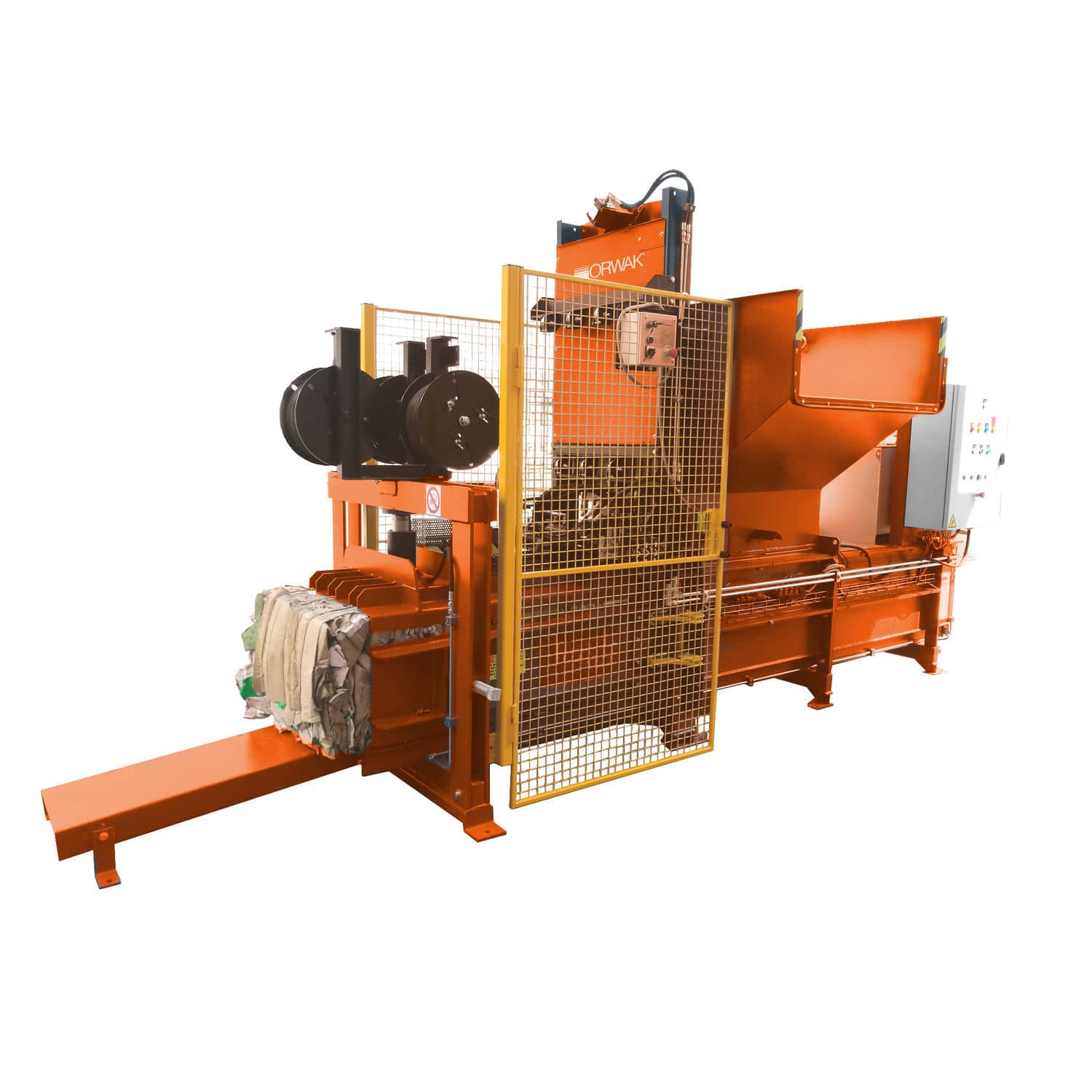

ORWAK HORIZONTAL 15 AT
ORWAK HORIZONTAL 15 AT — a compact, fully automatic 15 t baler. Throughput of 0.5–2 t/h and cardboard bales of 80–150 kg.
Compaction force
15 t / 150 kN
Bale weight
Cardboard 80–150 kg
Feed opening
1030 × 650 mm
Motor
7,5 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 15 AT — a compact, fully automatic horizontal baler for continuous cardboard, shredded paper and PET feeding in limited space.
Key benefits
- 15 t compaction force;
- cardboard throughput of 0.5–2 t/h;
- automatic photocell start;
- automatic tying with three wires;
- adjustable bale length;
- can be delivered in three sections.
Kada rinktis HORIZONTAL 15 AT?
Modelis skirtas ribotos erdvės vietoms, kuriose kartonas ar kitos tinkamos medžiagos atkeliauja nuolat ir reikalingas automatinis surišimas. Mažesniems smulkinto popieriaus srautams palyginkite 2050 AT, o didesniam centralizuotam kartono srautui – 25–40 AT seriją.
How it works
Waste is continuously fed by the selected method. A photocell starts the cycle, and bales of the set length are automatically tied with three wires and ejected.
Technical specifications
| Compaction force | 15 t |
|---|---|
| Feed opening | 1030 × 650 mm |
| Feed volume | 0,35 m³ |
| Motor | 7,5 kW |
| Cycles | 4/min. |
| Channel cross-section | 700 × 500 mm |
| Machine dimensions | 5172 × 1460 × 2495 mm |
| Machine weight | 2800 kg |
| Loading throughput | 50 m³/h |
| Tying | 3 wires, Ø2.7 mm |
| Bale dimensions | 700 × 500 × 600–1200 mm |
| Cardboard bale weight | 80–150 kg |
