ORWAK WASTE MANAGEMENT EQUIPMENT

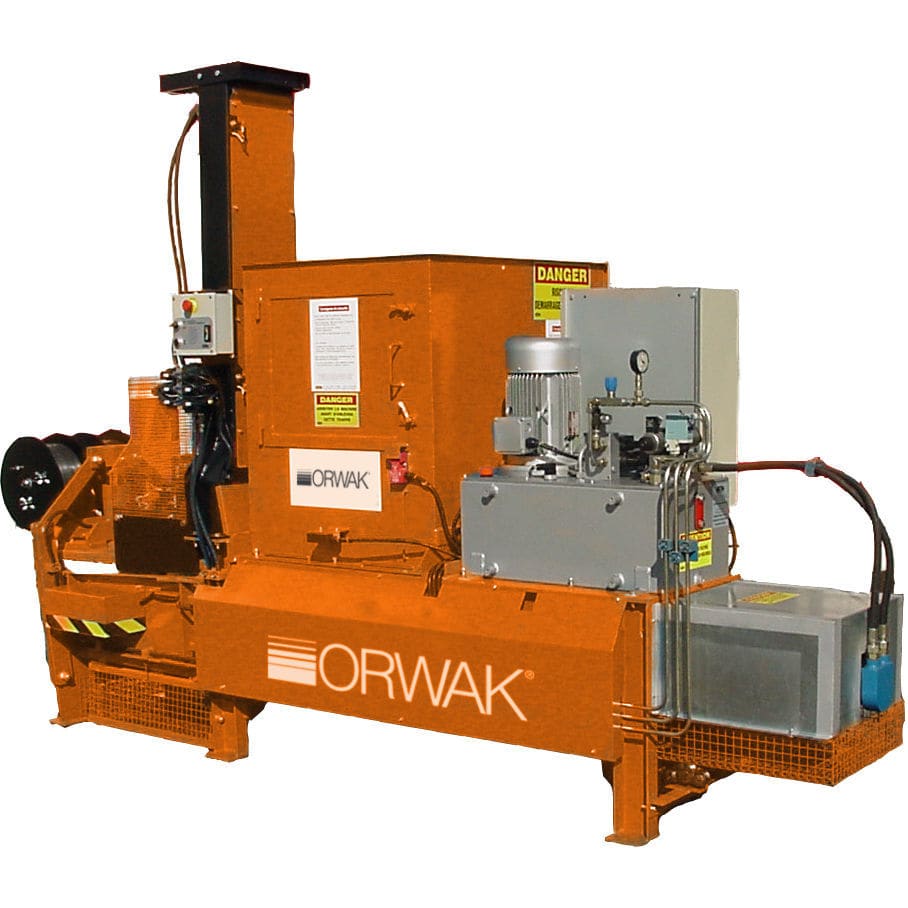

ORWAK HORIZONTAL 2050 AT
ORWAK HORIZONTAL 2050 AT — the most compact automatic horizontal baler. Compaction force of 10 t, throughput up to 0.7 t/h and cardboard bales of 20–50 kg.
Compaction force
10 t / 100 kN
Bale weight
Cardboard 20–50 kg
Feed opening
450 × 800 mm
Motor
7,5 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 2050 AT — ORWAK's smallest fully automatic horizontal baler. For shredded paper and smaller cardboard streams requiring continuous feeding and automatic tying.
Key benefits
- 10 t compaction force;
- cardboard throughput up to 0.7 t/h;
- automatic photocell start;
- automatic tying;
- adjustable bale length;
- the most compact HORIZONTAL model.
Kam tinka HORIZONTAL 2050 AT?
Šis kompaktiškas automatinis horizontalus presas aktualus, kai daugiausia susidaro smulkintas popierius arba mažesni kartono srautai, tačiau svarbus automatinis padavimas ir ryšulio surišimas. Kai kartono kiekiai didesni, verta palyginti ORWAK HORIZONTAL 15 AT.
How it works
Waste is fed continuously into the hopper. A photocell starts the cycle automatically, material is compacted in the channel, and at the set length the bale is tied automatically with two wires.
Technical specifications
| Compaction force | 10 t |
|---|---|
| Feed opening | 450 × 800 mm |
| Feed volume | 0,15 m³ |
| Motor | 7,5 kW |
| Cycles | 4/min. |
| Channel cross-section | 450 × 400 mm |
| Machine dimensions | 4165 × 1060 × 2425 mm |
| Machine weight | 1150 kg |
| Loading throughput | 21 m³/h |
| Tying | 2 wires, Ø2.7 mm |
| Bale dimensions | 450 × 400 × 500–1000 mm |
| Cardboard bale weight | 20–50 kg |
