ORWAK WASTE MANAGEMENT EQUIPMENT
ORWAK 3120

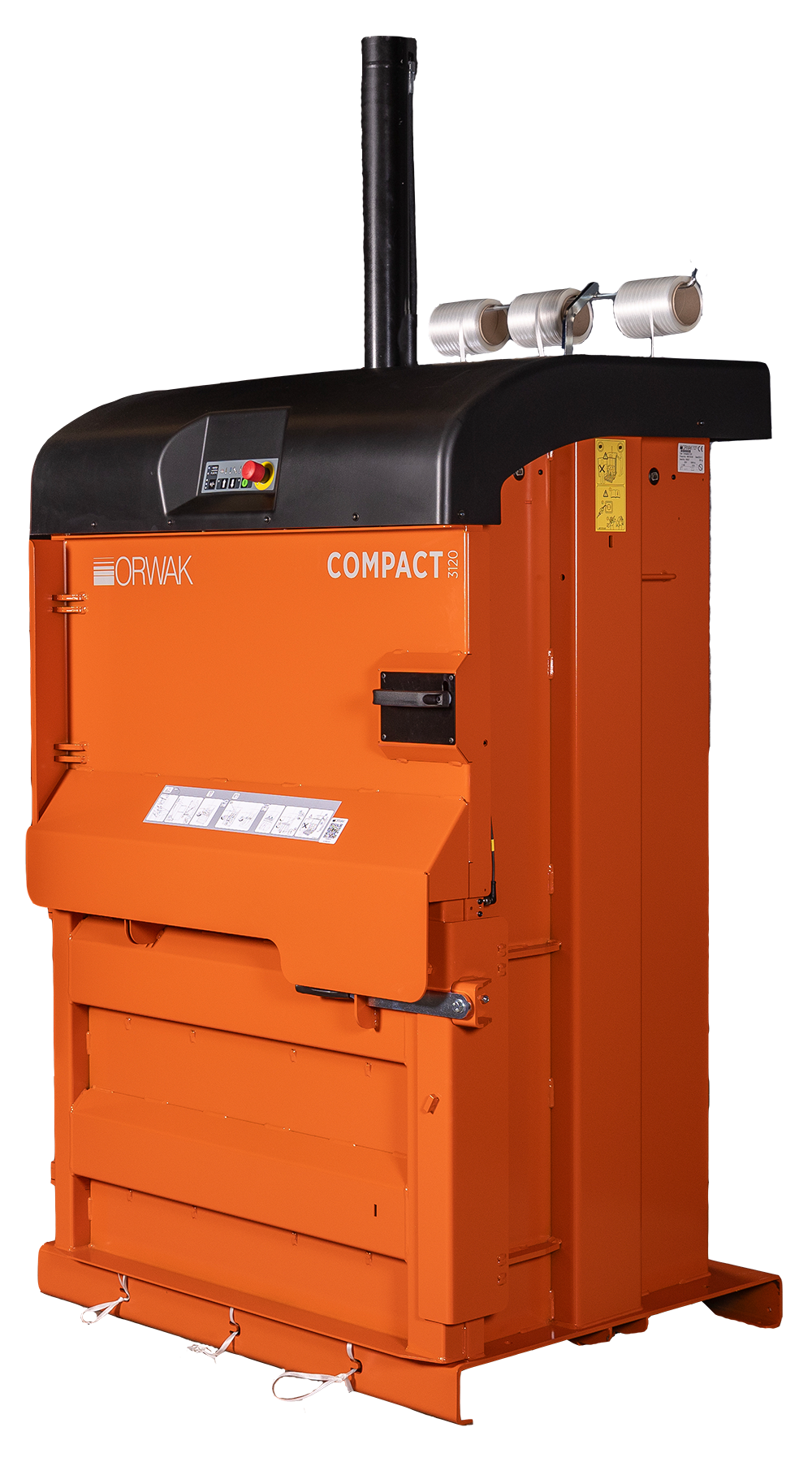

ORWAK COMPACT 3120 — a compact single-phase baler with an extra-wide 1000 mm opening. Suitable for cardboard and plastic film, with semi-automatic bale ejection.
Compaction force
6 t / 60 kN
Bale weight
Cardboard up to 100 kg · plastic up to 130 kg
Loading opening
1000 × 460 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK COMPACT 3120 combines a compact design with an extra-wide 1000 mm opening, making larger boxes and film easy to load without additional shredding. It uses single-phase 230 V power.
Key benefits
- 1000 mm-wide loading opening;
- automatic cycle start when the door closes;
- cardboard or plastic material selection;
- three adjustable bale-height settings;
- semi-automatic bale ejection;
- bale-full and service indicators;
- quiet hydraulic operation;
- optional ORWAK Connect remote monitoring.
Who is it for?
3120 suits retail, warehouses, logistics and other sites needing a wide opening without a large industrial baler.
Kaip palyginti su 3110 ir 3115?
Jei plati pakrovimo anga nebūtina, palyginkite kompaktišką ORWAK COMPACT 3110. Jei daugiausia presuojate minkštą plastikinę plėvelę, apsvarstykite ORWAK COMPACT 3115 su kryžminio surišimo funkcija. Galutinį sprendimą verta rinktis pagal medžiagą, darbo vietą ir ryšulių tvarkymą.
How it works
Waste is loaded through the wide 1000 mm opening. Closing the door starts the cycle; select cardboard or plastic mode and one of three bale heights on the panel.
The bale-full indicator alerts the operator. Semi-automatic ejection helps remove the bale safely and conveniently.
Technical specifications
| Compaction force | HP 6 t (60 kN); LP 4 t (40 kN) |
|---|---|
| Loading opening | 1000 × 460 mm |
| Cycle time | 33 s |
| Bale dimensions | 1000 × 700 × 800 mm |
| Bale weight | Cardboard up to 100 kg; plastic up to 130 kg |
| Machine weight | 580 kg |
| Machine dimensions (A × B × C) | 2342 × 1184 × 900 mm |
| Additional dimension D | 2035 mm |
| Transport height | 2342 mm; 1900 mm on request |
| Noise level | 62,3 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK COMPACT 3120 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
