ORWAK WASTE MANAGEMENT EQUIPMENT

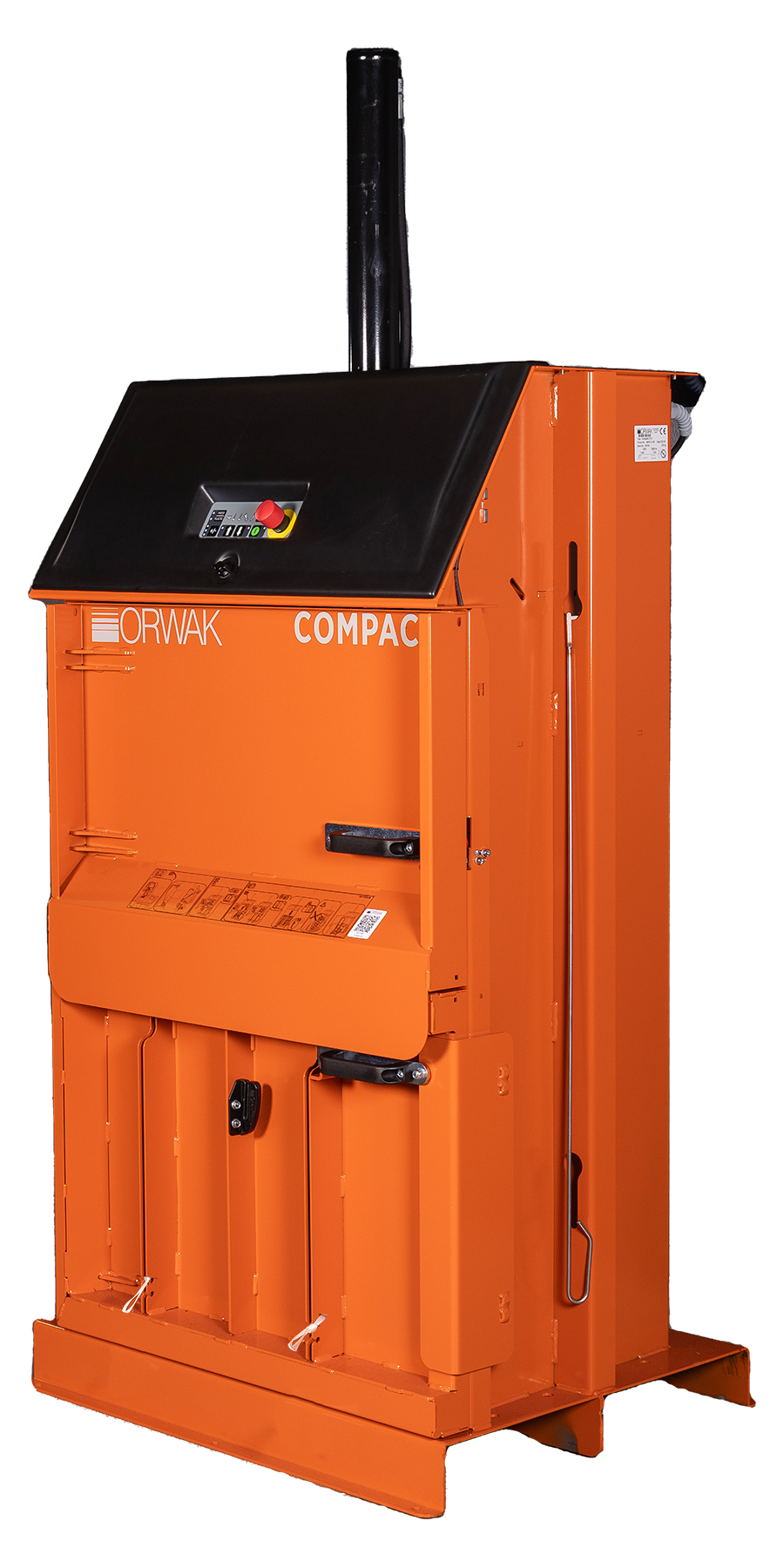

ORWAK 3110
The compact ORWAK COMPACT 3110 vertical baler handles small volumes of cardboard, paper and plastic film. A small footprint, automatic start and straightforward daily operation.
Compaction force
4 t / 40 kN
Bale weight
Cardboard up to 50 kg · plastic up to 70 kg
Loading opening
730 × 408 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK COMPACT 3110 — a compact vertical baler for small volumes of cardboard, paper and plastic film. Its small footprint makes it convenient to position close to waste generation in shops, warehouses, offices, hotels, restaurants or small production facilities.
Key benefits
- compact design and small footprint;
- automatic cycle start when the door closes;
- cardboard or plastic material selection;
- three adjustable bale-height settings;
- bale-full and service indicators;
- quiet hydraulic operation;
- bale trolley included;
- optional ORWAK Connect remote monitoring.
Who is it for?
3110 suits businesses regularly handling small to moderate cardboard and film volumes with limited room for a larger baler. Baling at the point of generation helps maintain order and reduce internal waste transport.
How it works
Waste is placed in the chamber. Closing the door starts the automatic compaction cycle. The control panel offers cardboard or plastic mode and three bale-height settings.
The bale-full indicator alerts the operator when the bale is ready. The included trolley simplifies removal and internal transport.
Technical specifications
| Compaction force | HP 4 t (40 kN); LP 3 t (30 kN) |
|---|---|
| Loading opening | 730 × 408 mm |
| Cycle time | 33 s |
| Bale dimensions | 700 × 500 × 600 mm |
| Bale weight | Cardboard up to 50 kg; plastic up to 70 kg |
| Machine weight | 252 kg |
| Machine dimensions (A × B × C) | 1990 × 866 × 720 mm |
| Additional dimensions | D: 1460 mm; E: 694 mm |
| Noise level | 62,3 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50/60 Hz, 10 A |
| Standby energy consumption | 0,6 W/h |
| Maximum operation per hour | 580 W/h |
Specifications from the official ORWAK COMPACT 3110 datasheet. Bale weight depends on the material and compaction conditions. Official ORWAK datasheet.
