ORWAK WASTE MANAGEMENT EQUIPMENT
ORWAK 3115
ORWAK COMPACT 3115 handles small plastic film and cardboard volumes. Cross-tying is particularly useful for soft plastic and smaller materials.
Compaction force
6 t / 60 kN
Bale weight
Cardboard up to 60 kg · plastic up to 85 kg
Loading opening
800 × 460 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine

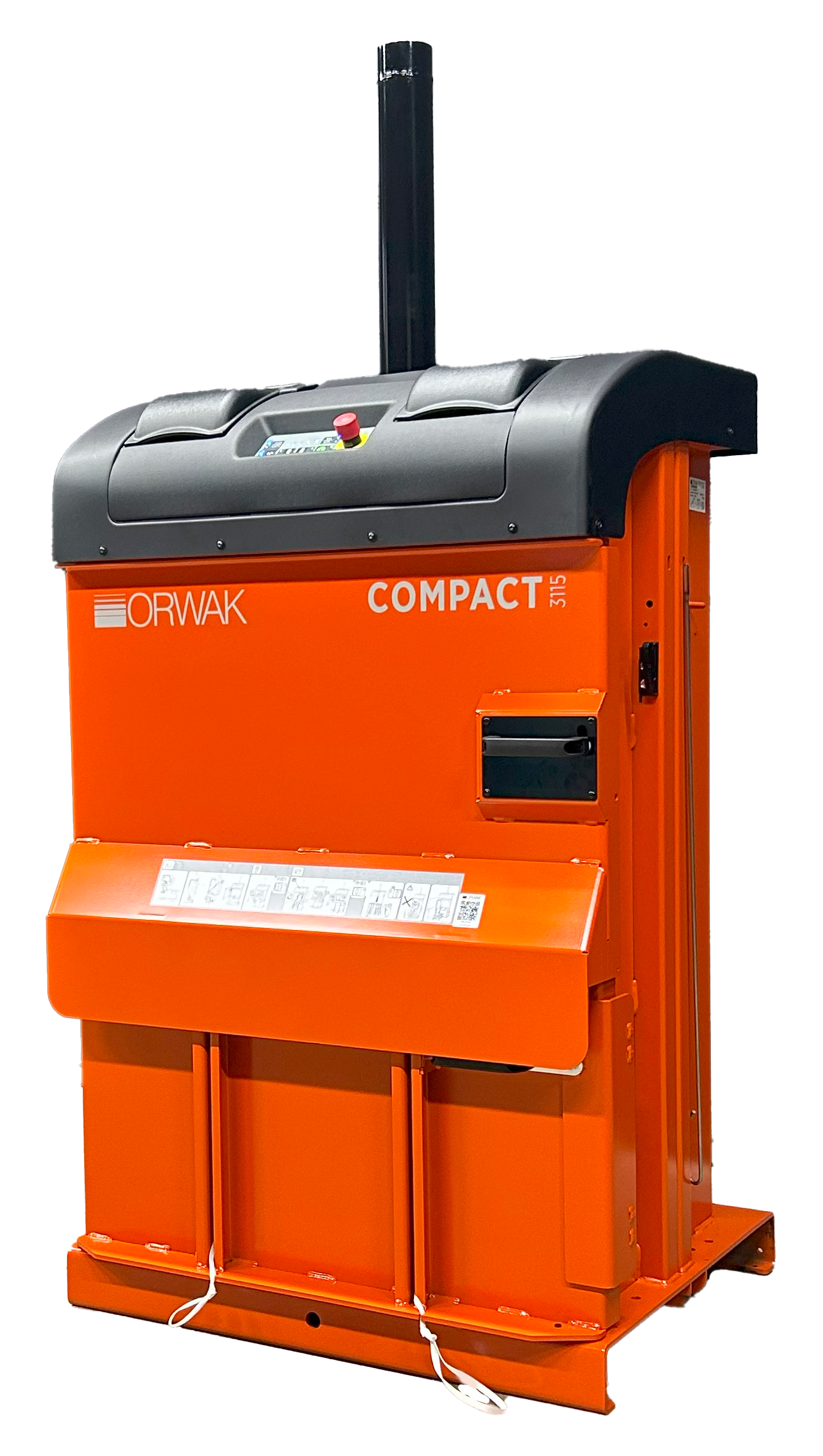

ORWAK COMPACT 3115 — a compact vertical baler for cardboard and film. Its cross-tying function produces firmer bales and is particularly useful for soft plastic or smaller materials.
Key benefits
- cross-tying option;
- automatic cycle start when the door closes;
- cardboard or plastic material selection;
- three adjustable bale-height settings;
- bale-full and service indicators;
- quiet hydraulic operation;
- bale trolley included;
- optional ORWAK Connect remote monitoring.
Who is it for?
3115 suits sites with small cardboard and especially film volumes, where stable, compact bale tying matters.
How it works
Waste is placed in the chamber; closing the door starts the automatic cycle. The operator selects cardboard or plastic mode and the required bale height.
3115's cross-tying system is especially useful for soft film and smaller materials. An indicator signals when the bale is ready, and the included trolley simplifies removal.
Technical specifications
| Compaction force | HP 6 t (60 kN); LP 4 t (40 kN) |
|---|---|
| Loading opening | 800 × 460 mm |
| Cycle time | 33 s |
| Bale dimensions | 800 × 600 × 600 mm |
| Bale weight | Cardboard up to 60 kg; plastic up to 85 kg |
| Machine weight | 380 kg |
| Machine dimensions (A × B × C) | 1993 × 950 × 808 mm |
| Additional dimensions | D: 1606 mm; E: 648 mm |
| Noise level | 62,3 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK COMPACT 3115 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
