ORWAK WASTE MANAGEMENT EQUIPMENT

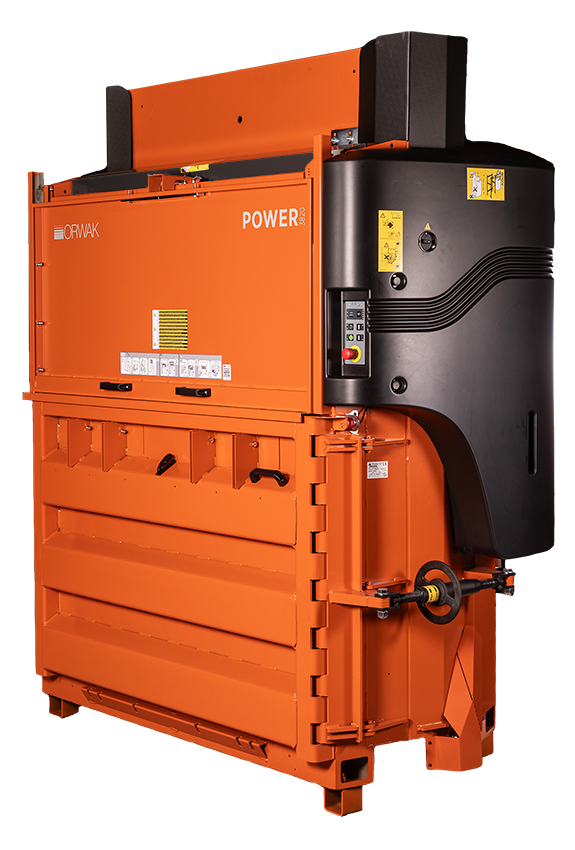

ORWAK POWER 3820
ORWAK POWER 3820 — a high-throughput vertical baler with an extra-wide 1500 mm loading opening. Compaction force of 26 t, a 24 s cycle and cardboard bales up to 500 kg.
Compaction force
26 t / 260 kN
Bale weight
Cardboard up to 500 kg
Loading opening
1500 × 630 mm
Power supply
3 × 400 V · three-phase
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK POWER 3820 — the largest vertical baler in the POWER family, designed for large cardboard volumes and bulky boxes. The 1500 mm-wide opening makes large packages easy to load without additional shredding.
Key benefits
- 26 t compaction force;
- fast 24 s cycle;
- cardboard bales up to 500 kg;
- extra-wide 1500 × 630 mm loading opening;
- automatic start and self-opening sliding door;
- dedicated plastic mode for film;
- low design for easier transport and installation;
- prepared for optional ORWAK Connect.
Who is it for?
3820 suits logistics, retail, warehouses and manufacturers generating large boxes and higher waste volumes, where a smaller opening would limit productivity.
How it works
Large boxes are loaded through the 1500 × 630 mm opening. Closing the sliding door starts the 24-second cycle; the door opens again afterwards.
Designed for high cardboard volumes, the baler also offers a dedicated LP mode for plastic film. Finished bales are tied with polyester strapping or wire.
Technical specifications
| Compaction force | 26 t (260 kN) |
|---|---|
| Loading opening | 1500 × 630 mm |
| Cycle time | 24 s |
| Bale dimensions | 1500 × 800 × 1140 mm |
| Bale weight | Cardboard up to 500 kg |
| Machine weight | 1220 kg |
| Machine dimensions (A × B × C) | 2576 × 2075 × 1060 mm |
| Additional dimensions | D: 2625 mm; E: 1144 mm |
| Transport height | 1980 mm; removable transport feet add 100 mm |
| Noise level | ≤ 65 dB(A) |
| Power supply | Three-phase, 3 × 400 V, 50 Hz |
Specifications from the official ORWAK POWER 3820 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
