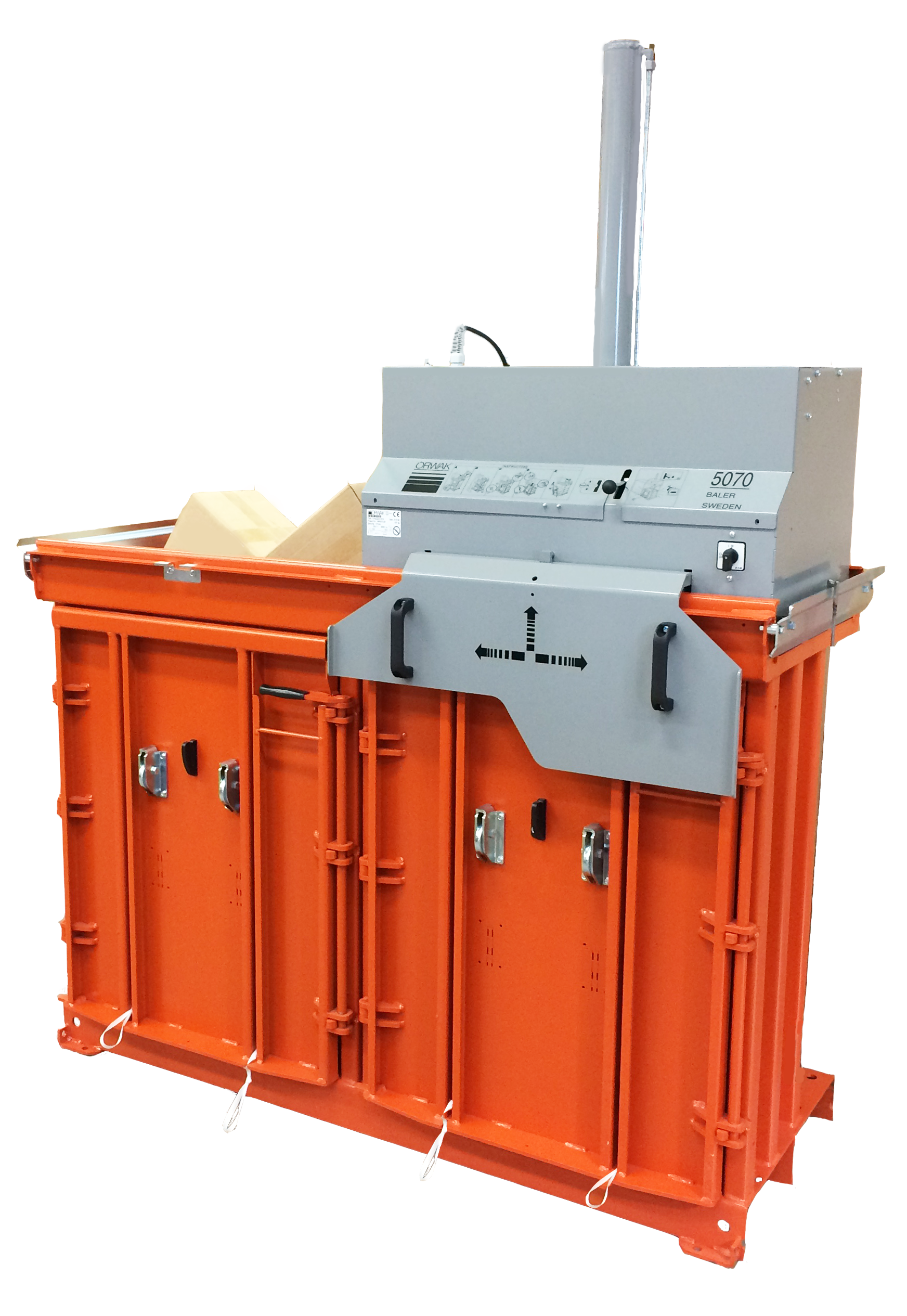

ORWAK MULTI 5070
ORWAK MULTI 5070 — a compact multi-chamber baler for sorting waste at source. Compaction force of 3 t, cardboard bales up to 50 kg and plastic bales up to 80 kg.
Compaction force
3 t / 30 kN
Bale weight
Cardboard up to 50 kg · plastic up to 80 kg
Loading opening
700 × 500 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK MULTI 5070 — a multi-chamber baler that compresses waste in one chamber while another is loaded with a different material. Two chambers are standard, with more available.
Key benefits
- separate several waste types in one machine;
- compact footprint;
- top loading into open chambers;
- one chamber remains accessible while another is compacting;
- additional chambers can be added;
- bale trolley included.
Who is it for?
5070 suits retail, hotels, restaurants, offices and manufacturing with several recyclable streams at one site, such as cardboard and film.
How it works
Waste is top-loaded into the chosen chamber. The press head slides over it for the compaction cycle, while another chamber remains available for loading.
The finished bale is tied and removed using the included trolley. Additional chambers can increase sorting capacity.
Technical specifications
| Compaction force | 3 t (30 kN) |
|---|---|
| Loading opening | 700 × 500 mm |
| Cycle time | 36 s |
| Bale dimensions | 700 × 500 × 700 mm |
| Bale weight | Cardboard up to 50 kg; plastic up to 80 kg |
| Machine weight | Total 522 kg; chambers 365 kg; press unit 157 kg |
| Machine dimensions (A × B × C) | 2160 × 1740 × 735 mm |
| Width including strap holders | 880 mm |
| Additional dimensions | D: 1430 mm; E: 1205 mm |
| Noise level | < 70 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK MULTI 5070 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
