ORWAK WASTE MANAGEMENT EQUIPMENT

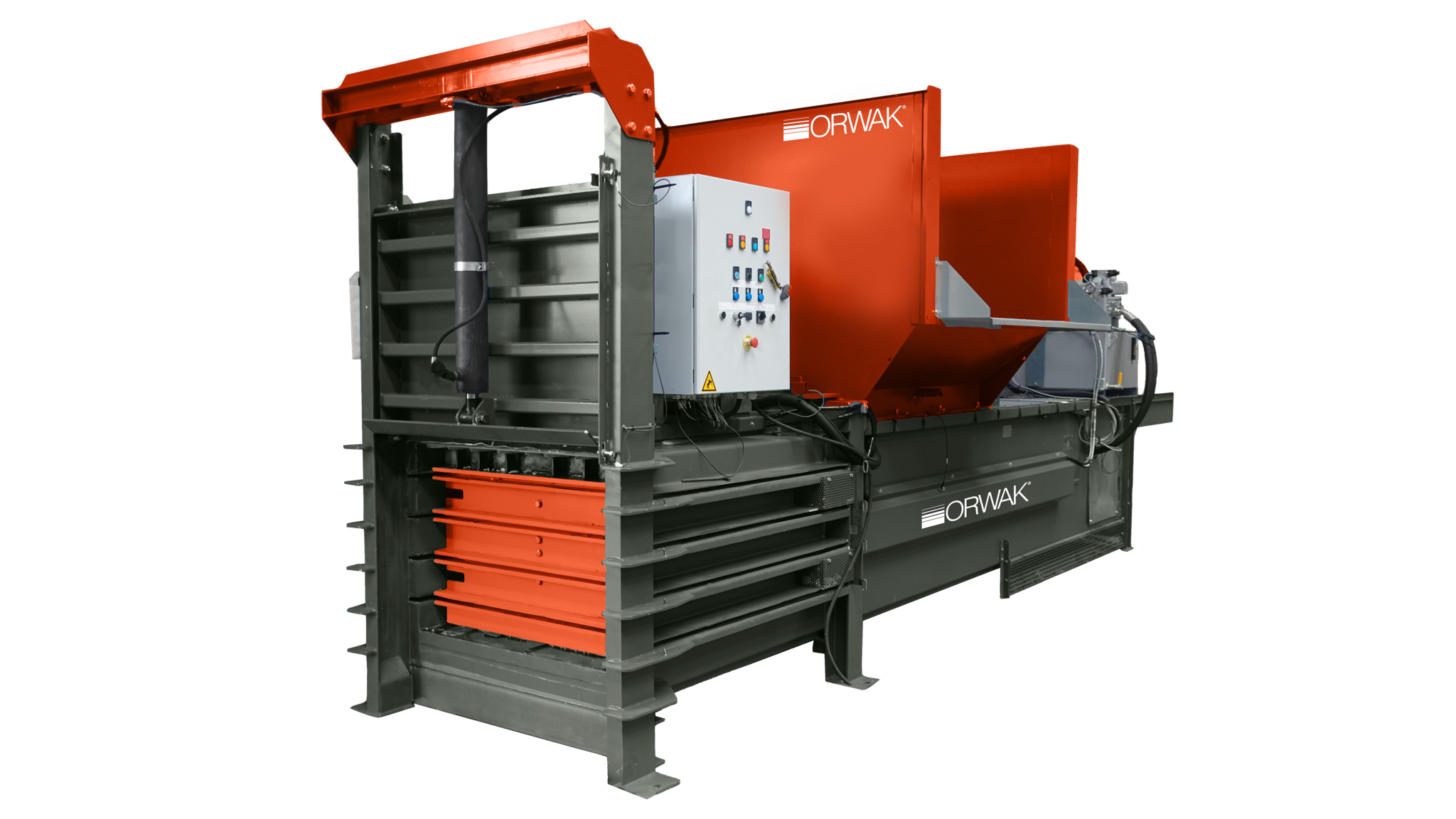

ORWAK semi-automatic horizontal balers 1540 / 1550 / 1560
ORWAK SEMI-AUTOMATIC 1540 / 1550 / 1560 — compact horizontal balers for larger streams of cardboard, paper, film and other suitable recyclables. Compaction force of 40–60 t and cardboard bales up to 500–600 kg.
Compaction force
40 / 50 / 60 t
Cardboard bale weight
Up to 500 / 550 / 600 kg
Loading opening
1500 × 1100 mm
Motor
7,5 / 15 / 15 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK SEMI-AUTOMATIC 1540, 1550 and 1560 — compact closed-end horizontal balers for sites where vertical balers require too much operator time, but fully automatic tying is not yet needed.
Key benefits
- 40, 50 or 60 t compaction force;
- automatic compaction cycle;
- large 1500 × 1100 mm loading opening;
- closed-end compaction for dense bales;
- manual four-point bale tying;
- semi-automatic bale ejection onto a pallet;
- multiple feeding options — manual, bin lifter, chute, conveyor or forklift;
- suitable for indoor installation.
Who is it for?
This series suits retail, manufacturing, warehouses, logistics and distribution centres, and recyclers handling larger volumes of cardboard, paper, plastic film, PP bulk bags or punctured PET bottles.
Which model should you choose?
1540 — 40 t model with a 7.5 kW motor. 1550 — 50 t model with a 15 kW motor and the shortest cycle, at 39 s. 1560 — 60 t model for maximum compaction force.
How it works
Waste is fed manually or by bin lifter, chute, conveyor or forklift. A photocell can start the automatic cycle, compressing material against the closed end of the channel.
When the chamber is full and the bale ready, the operator manually ties it with four straps or wires. A pallet is placed in front, and two-button operation ejects the bale semi-automatically onto it for forklift collection.
Technical specifications
| Specification | 1540 | 1550 | 1560 |
|---|---|---|---|
| Compaction force | 40 t / 400 kN | 50 t / 500 kN | 60 t / 600 kN |
| Loading volume | 1,25 m³ | 1,25 m³ | 1,25 m³ |
| Cycle time | 58 s | 39 s | 52 s |
| Motor | 7,5 kW | 15 kW | 15 kW |
| Surface pressure | 4,8 kg/cm² | 6,1 kg/cm² | 7,3 kg/cm² |
| Bale dimensions in chamber | 1100 × 750 × 900–1300 mm | 1100 × 750 × 900–1300 mm | 1100 × 750 × 900–1300 mm |
| Bale tying | 4 ties | 4 ties | 4 ties |
| Cardboard bale weight | Up to 500 kg | Up to 550 kg | Up to 600 kg |
| Machine weight | 4950 kg | 5100 kg | 5250 kg |
| Oil tank capacity | 170 l | 300 l | 300 l |
General specifications
| Machine dimensions (L × W × H) | 7460 × 2160 × 2550 mm |
|---|---|
| Loading opening | 1500 × 1100 mm |
| Baling channel | 1100 × 750 mm |
| Power supply | 3 × 400 V, 50 Hz |
Specifications from the SEMI-AUTO 1540–1550–1560 brochure currently available on the official ORWAK product page. Bale length may increase by 10–20% after ejection; stated bale weights apply to cardboard. Official ORWAK technical brochure.
