ORWAK WASTE MANAGEMENT EQUIPMENT

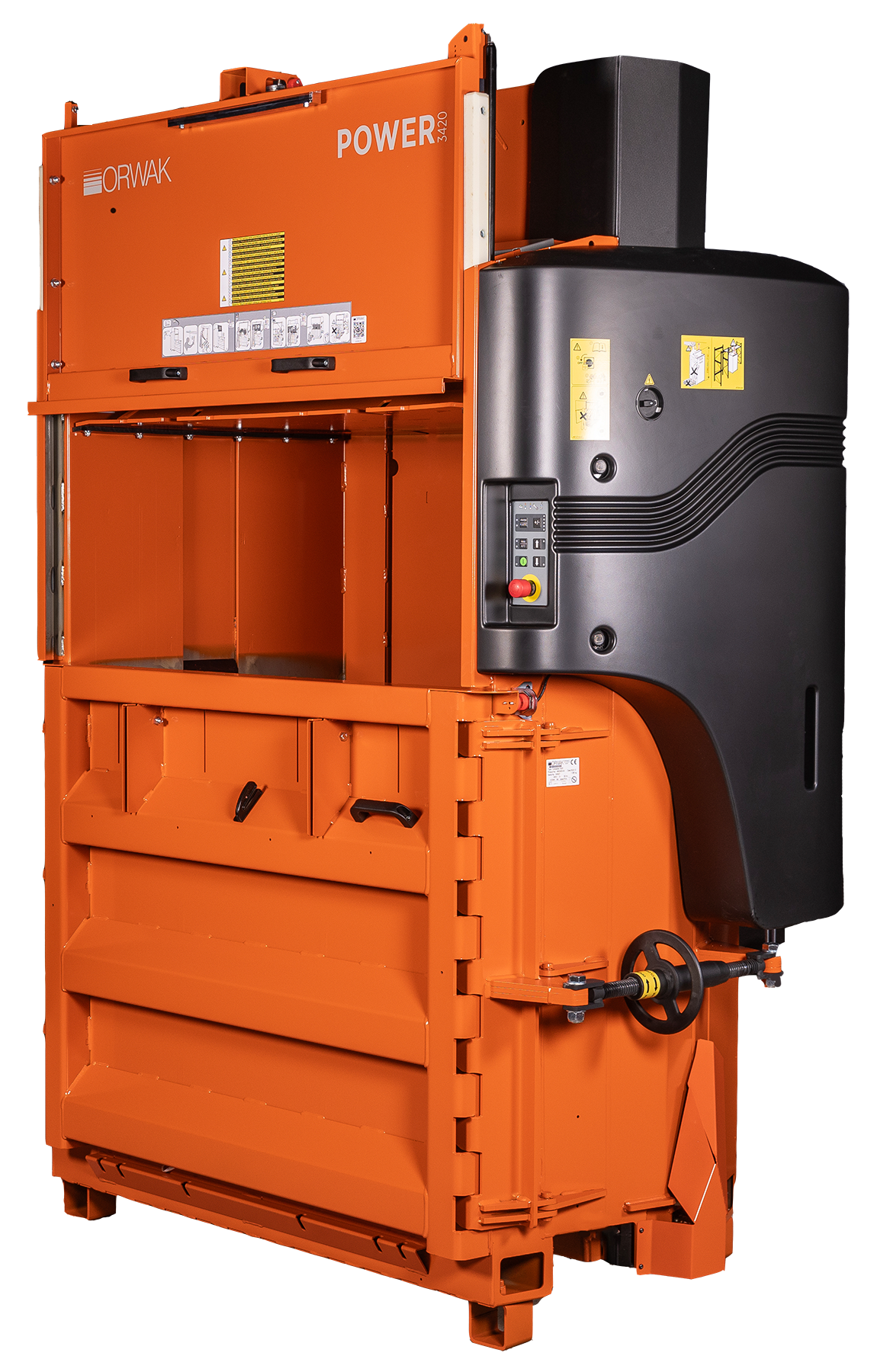

ORWAK POWER 3420
ORWAK POWER 3420 — a high-throughput vertical baler for larger cardboard and film volumes. Compaction force of 26 t, a 24 s cycle and cardboard bales up to 400 kg.
Compaction force
26 t / 260 kN
Bale weight
Cardboard up to 400 kg · plastic up to 450 kg
Loading opening
1200 × 520 mm
Power supply
3 × 400 V · three-phase
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK POWER 3420 — a versatile high-throughput vertical baler for larger cardboard and film streams. The POWER family combines a low design, fast cycle and high compaction force.
Key benefits
- 26 t compaction force;
- fast 24 s cycle;
- cardboard bales up to 400 kg and plastic bales up to 450 kg;
- automatic start when the sliding door closes;
- cardboard or plastic material selection;
- dedicated plastic mode holds film compressed for longer;
- adjustable bale height;
- prepared for optional ORWAK Connect.
Who is it for?
3420 suits retail, warehouses, logistics and manufacturing where volumes have outgrown smaller balers but a compact vertical format is preferred.
How it works
Waste is loaded through the 1200 × 520 mm opening. Closing the sliding door starts the 24-second cycle; it opens again afterwards.
Select cardboard or plastic mode on the panel. Plastic mode holds film compressed for longer to release more air. Finished bales are tied with polyester strapping or wire.
Technical specifications
| Compaction force | 26 t (260 kN) |
|---|---|
| Loading opening | 1200 × 520 mm |
| Cycle time | 24 s |
| Bale dimensions | 1200 × 800 × 1150 mm |
| Bale weight | Cardboard up to 400 kg; plastic up to 450 kg |
| Machine weight | 1080 kg |
| Machine dimensions (A × B × C) | 2380 × 1775 × 1060 mm |
| Additional dimensions | D: 2325 mm; E: 1153 mm |
| Transport height | 1980 mm; removable transport feet add 100 mm |
| Noise level | ≤ 65 dB(A) |
| Protection rating | IP55 |
| Power supply | Three-phase, 3 × 400 V, 50 Hz |
Specifications from the official ORWAK POWER 3420 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
