ORWAK WASTE MANAGEMENT EQUIPMENT

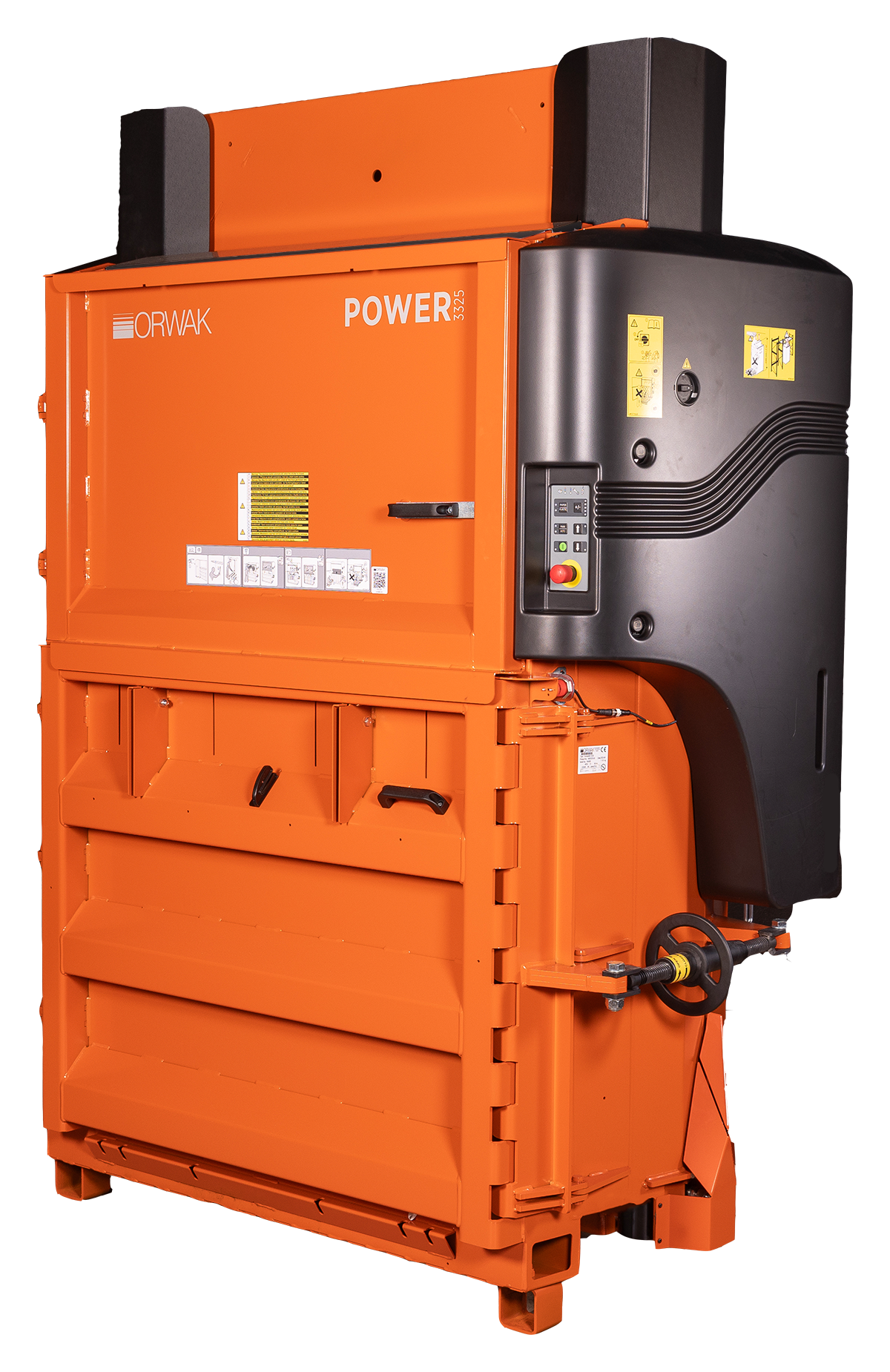

ORWAK POWER 3325
ORWAK POWER 3325 — a fast 26 t vertical baler for larger cardboard and film streams. A 24 s cycle, cardboard bales up to 400 kg and plastic bales up to 450 kg.
Compaction force
26 t / 260 kN
Bale weight
Cardboard up to 400 kg · plastic up to 450 kg
Loading opening
1200 × 520 mm
Power supply
3 × 400 V · three-phase
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK POWER 3325 belongs to the high-throughput POWER family. It handles more intensive cardboard and especially soft-film baling where dense bales, a fast cycle and reliable operation matter.
Key benefits
- 26 t compaction force;
- fast 24 s cycle;
- cardboard bales up to 400 kg and plastic bales up to 450 kg;
- automatic cycle start;
- dedicated plastic mode holds film compressed;
- low design for easier transport and installation;
- bales can be tied with polyester strapping or wire;
- prepared for optional ORWAK Connect.
Who is it for?
3325 suits retail, warehouses, logistics and manufacturing with larger cardboard and film volumes requiring a fast, heavy-duty baler.
How it works
Waste is loaded and closing the door starts the 24-second automatic cycle. Select cardboard or plastic mode on the control panel.
Plastic mode can hold film compressed for longer to release more air. The finished bale is tied with polyester strapping or wire and ejected.
Technical specifications
| Compaction force | 26 t (260 kN) |
|---|---|
| Loading opening | 1200 × 520 mm |
| Cycle time | 24 s |
| Bale dimensions | 1200 × 800 × 1150 mm |
| Bale weight | Cardboard up to 400 kg; plastic up to 450 kg |
| Machine weight | 1080 kg |
| Machine dimensions (A × B × C) | 2380 × 1775 × 1060 mm |
| Additional dimensions | D: 2325 mm; E: 1153 mm |
| Transport height | 1980 mm; removable transport feet add 100 mm |
| Noise level | ≤ 65 dB(A) |
| Protection rating | IP55 |
| Power supply | Three-phase, 3 × 400 V, 50 Hz |
Specifications from the official ORWAK POWER 3325 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
