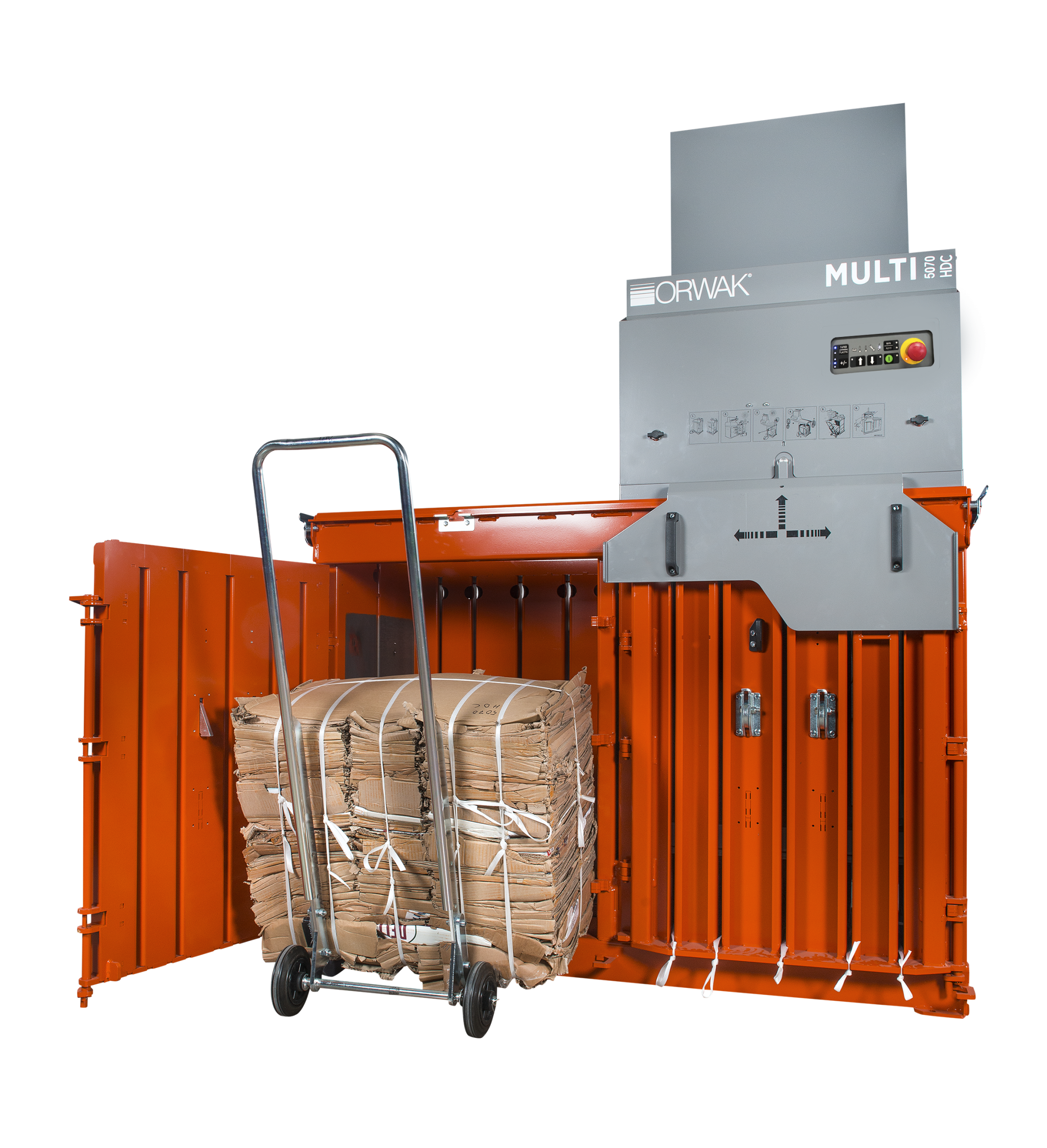

ORWAK MULTI 5070-HDC
ORWAK MULTI 5070-HDC — a reinforced multi-chamber baler for more demanding waste. Compaction force of 10 t, cross-tying and bales up to 80 kg of cardboard or 100 kg of plastic.
Compaction force
10 t / 100 kN
Bale weight
Cardboard up to 80 kg · plastic up to 100 kg
Loading opening
700 × 500 mm
Power supply
3 × 400 V · three-phase
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK MULTI 5070-HDC — a reinforced MULTI 5070 version for cardboard and film, as well as PET bottles, plastic containers, food or paint cans and other more resistant packaging.
Key benefits
- 10 t compaction force;
- cross-tying with 2–6 straps according to material;
- separate several waste types in one machine;
- load one chamber while another is compacting;
- additional chambers can be added;
- bale trolley included;
- optional ORWAK Connect.
Who is it for?
5070-HDC suits businesses needing more capacity than the standard 5070, or handling tougher packaging that requires more stable bale tying.
How it works
Waste is top-loaded into the selected chamber. The press head moves over it for a 20-second cycle while another chamber can be loaded with a different material.
The 5070-HDC bale is cross-tied with 2–6 straps according to the material and planned handling. The included trolley removes the finished bale.
Technical specifications
| Compaction force | 10 t (100 kN) |
|---|---|
| Loading opening | 700 × 500 mm |
| Cycle time | 20 s |
| Bale dimensions | 700 × 500 × 700 mm |
| Bale weight | Cardboard up to 80 kg; plastic up to 100 kg |
| Machine weight | Total 850 kg; chambers 525 kg; press unit 325 kg |
| Machine dimensions (A × B × C) | 2200 × 1740 × 716 mm |
| Width including strap holders | 830 mm |
| Additional dimensions | D: 1429 mm; E: 1205 mm |
| Bale tying | Cross-tying, 2–6 straps depending on material |
| Noise level | < 72 dB(A) |
| Protection rating | IP55 |
| Power supply | Three-phase, 3 × 400 V, 50 Hz |
Specifications from the official ORWAK MULTI 5070-HDC datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
