ORWAK WASTE MANAGEMENT EQUIPMENT
ORWAK MULTI 5070-COMBI
ORWAK MULTI 5070-COMBI combines a recyclable-waste baler and a bin compactor in one system. Compaction force of 3 t, with cardboard bales up to 50 kg and plastic bales up to 80 kg.
Compaction force
3 t / 30 kN
Bale weight
Cardboard up to 50 kg · plastic up to 80 kg
Loading opening
700 × 500 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine

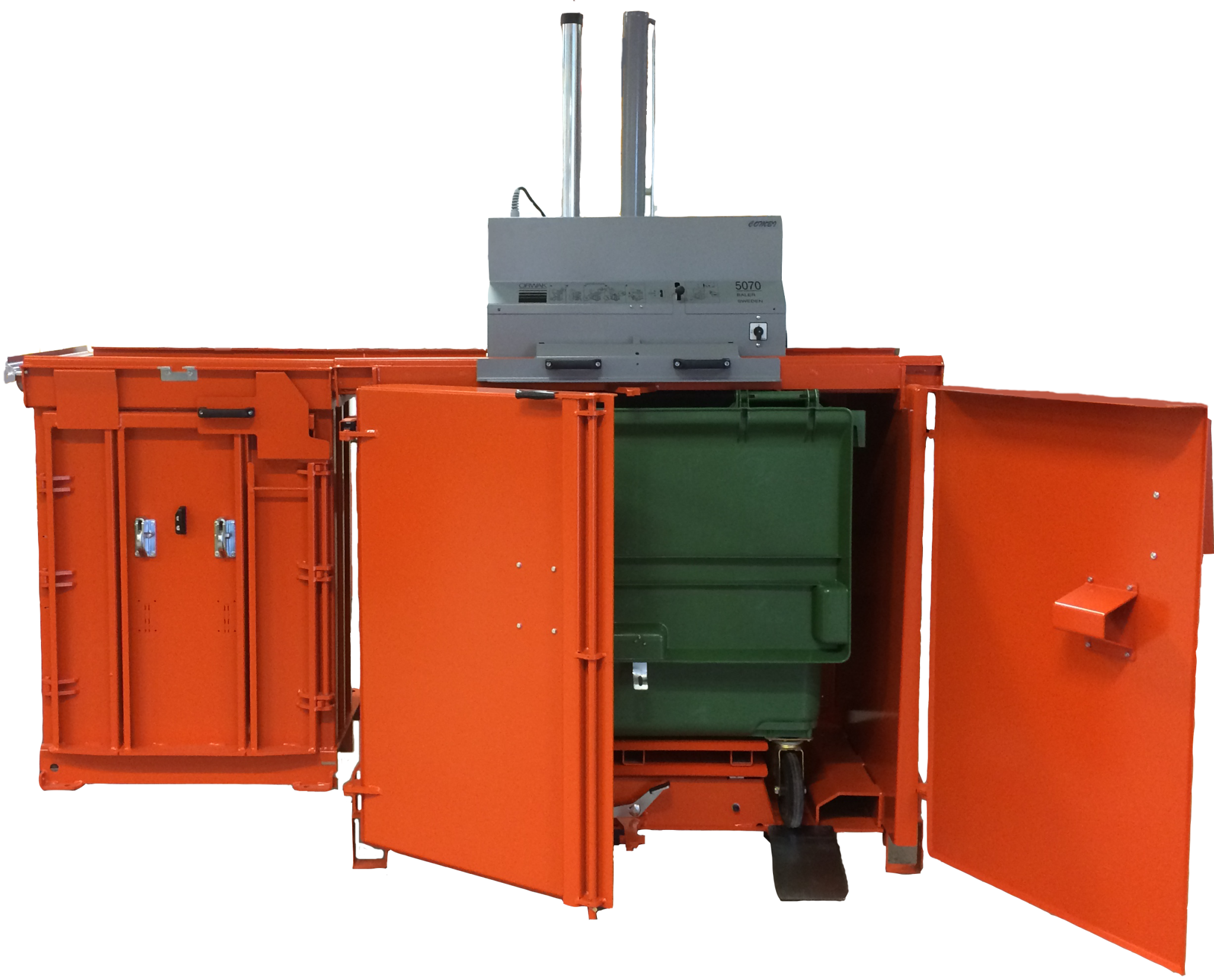

ORWAK MULTI 5070-COMBI — a combined multi-chamber solution: one chamber produces cardboard or plastic bales, while another compacts waste in a standard wheeled bin. Additional chambers can extend the system.
Key benefits
- baler and bin compactor in one machine;
- suitable for standard four-wheeled bins up to 660 l;
- handles dry recyclables and bagged mixed waste in one system;
- top loading;
- additional chambers can be connected as required;
- bale trolley included.
Who is it for?
5070-COMBI suits retail, hotels, catering and service sites that need to bale cardboard or film and compact general waste in bins.
How it works
Recyclables are top-loaded and baled as in the MULTI 5070. A standard wheeled bin is placed in the adjacent chamber for compaction of bagged mixed or semi-dry waste.
The press head moves to the selected chamber. When a cardboard or plastic bale is ready, it is tied and removed with the included trolley. Additional chambers can extend the system.
Technical specifications
| Compaction force | 3 t (30 kN) |
|---|---|
| Loading opening | 700 × 500 mm |
| Cycle time | 36 s |
| Bale dimensions | 700 × 500 × 700 mm |
| Bale weight | Cardboard up to 50 kg; plastic up to 80 kg |
| Bin chamber | For standard four-wheeled bins up to 660 l; 400 l option available |
| Total weight | 803 kg (660 l) / 618 kg (400 l) |
| Baling chamber weight | 196 kg |
| Bin chamber weight | 450 kg / 265 kg |
| Press unit weight | 157 kg |
| Dimension A | 2265 mm / 2315 mm |
| Dimension B | 2550 mm / 1960 mm |
| Dimension C | 920 mm / 808 mm; including strap holders 1011 mm / 899 mm |
| Additional dimensions | D: 1675 mm / 1733 mm; E: 1325 mm / 1333 mm |
| Noise level | < 70 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK MULTI 5070-COMBI datasheet. Dimensions and weights depend on the 660 l or 400 l bin configuration. Official ORWAK datasheet.
