ORWAK WASTE MANAGEMENT EQUIPMENT

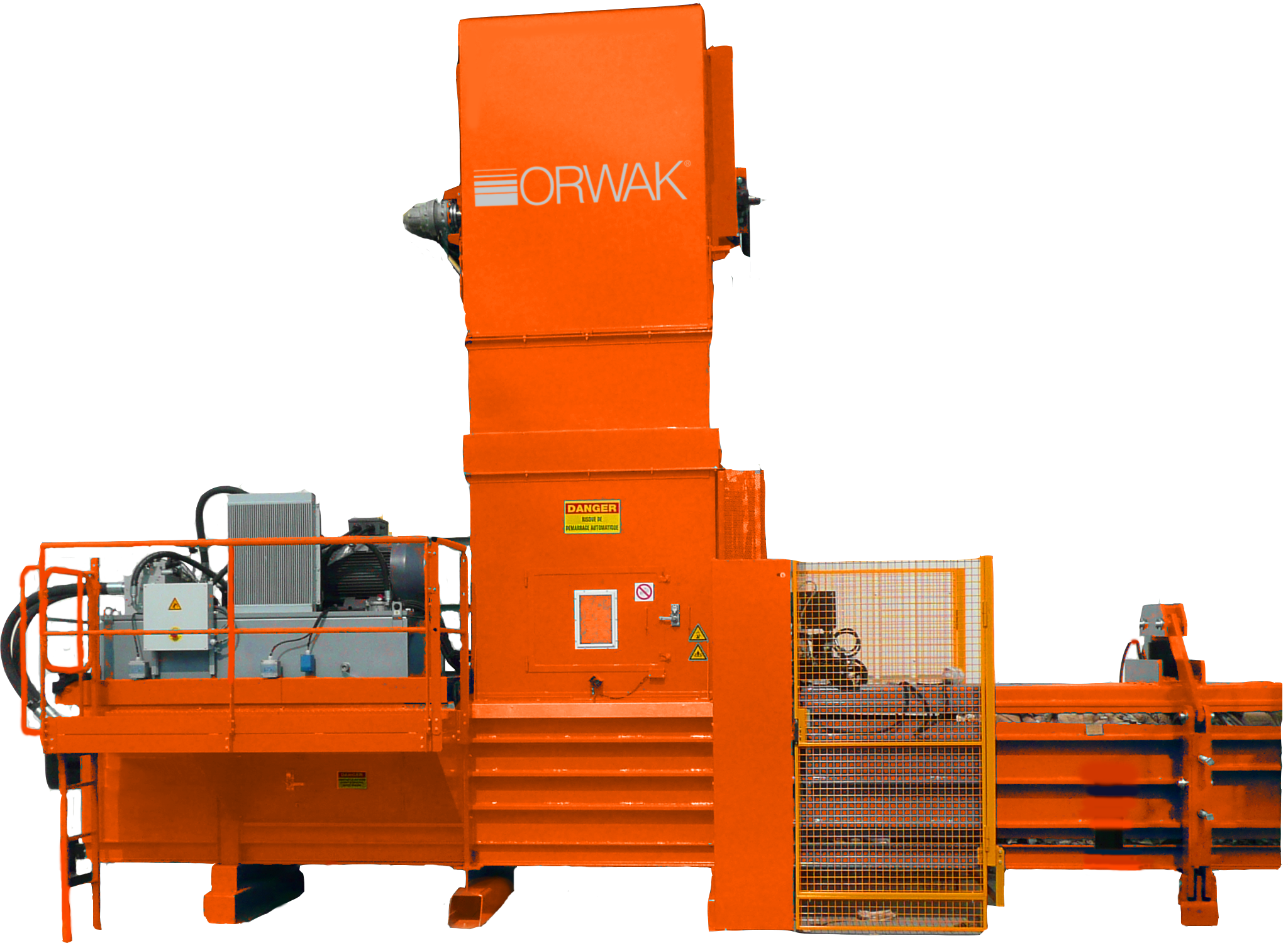

ORWAK HORIZONTAL 800 AT
ORWAK HORIZONTAL 800 AT — a fully automatic 80 t horizontal baler for large recyclable material streams. Throughput of 8–13 t/h and cardboard bales of 400–800 kg.
Compaction force
80 t / 800 kN
Bale weight
Cardboard 400–800 kg
Feed opening
1550 × 1000 mm
Motor
55 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 800 AT — a high-throughput, fully automatic horizontal baler for centralised compaction of cardboard, paper, plastic and other suitable materials. Designed for continuous feeding and automatic bale formation.
Key benefits
- 80 t compaction force;
- 8–13 t/h throughput depending on material density;
- automatic photocell start;
- progressive cutting system for more efficient compaction;
- adjustable bale length;
- automatic tying with four wires;
- vertical or horizontal tying available;
- various feeding solutions and optional accessories.
Who is it for?
800 AT serves large, continuous streams in logistics, manufacturing, retail chains and recycling businesses requiring high hourly throughput and minimal operator involvement.
How it works
Waste is continuously fed into the hopper by conveyor, bin lifter, pneumatic transport or manually. A photocell automatically starts the cycle.
Material is compacted in the channel. At the set length, the bale is automatically tied with four wires and ejected. Length is adjustable to material and logistics requirements.
Technical specifications
| Compaction force | 80 t (800 kN) |
|---|---|
| Feed opening | 1550 × 1000 mm |
| Feed volume | 1,24 m³ |
| Motor | 55 kW / 75 hp |
| Surface pressure | 10 kg/cm² |
| Cycles | 5 cycles per minute |
| Baling channel | 1000 × 800 mm |
| Oil tank capacity | 1000 l |
| Machine dimensions excluding bale outlet (L × W × H) | 8515 × 2150 × 3450 mm |
| Machine weight | 13 000 kg |
| Volumetric throughput | 225 m³/h |
| Throughput by material density | 8–13 t/h |
| Automatic tying | 4 wires, Ø3.2 mm |
| Bale dimensions | 1000 × 800 × 800–2200 mm, adjustable length |
| Cardboard bale weight | 400–800 kg, depending on bale length and material |
Specifications from the official ORWAK HORIZONTAL 800 AT datasheet. Official ORWAK datasheet.
