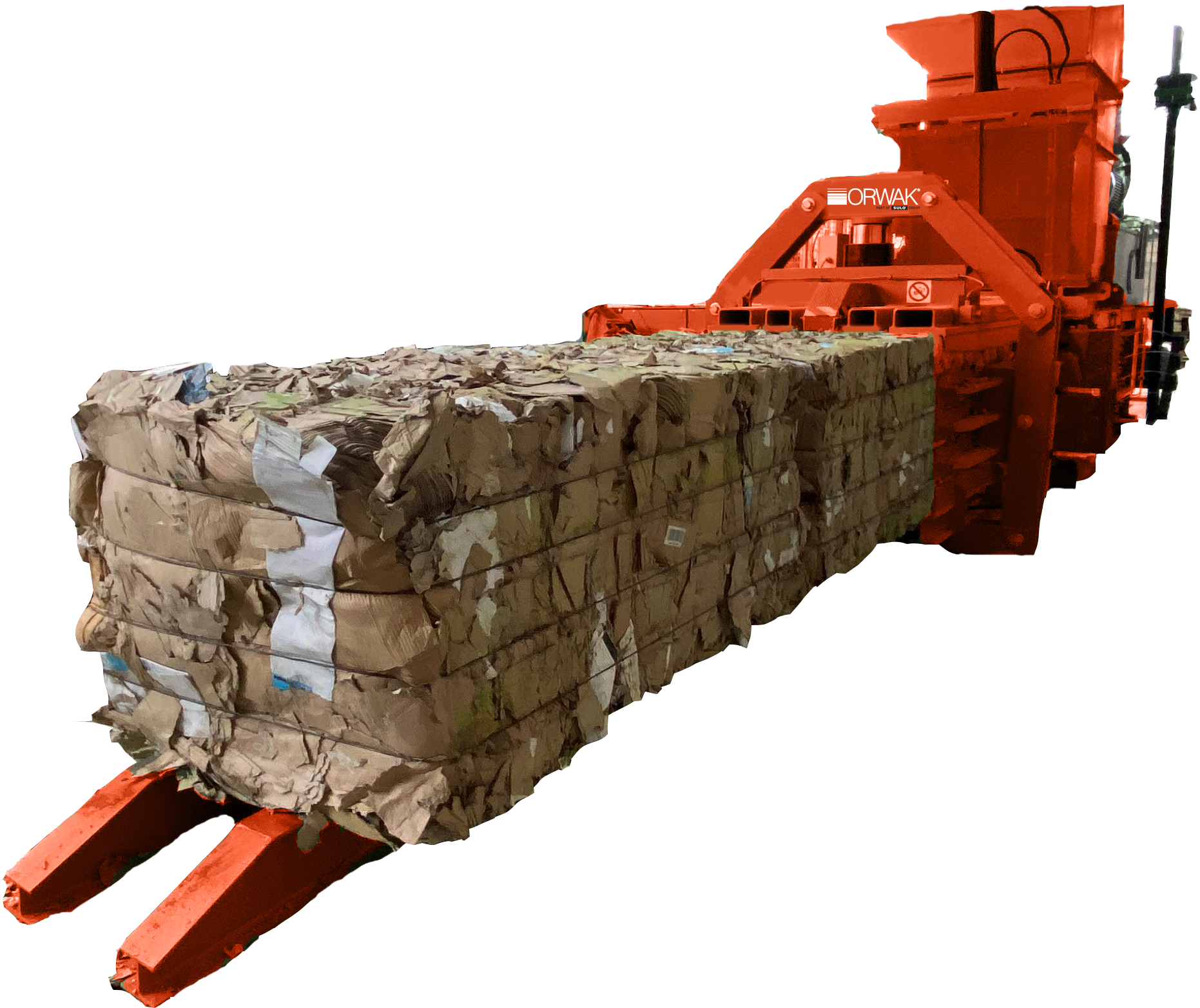

ORWAK HORIZONTAL 1000 ATH
ORWAK HORIZONTAL 1000 ATH — a fully automatic 100 t horizontal baler for very large recyclable material streams. Throughput of 11–25 t/h and cardboard bales of 400–1000 kg.
Compaction force
100 t / 1000 kN
Bale weight
Cardboard 400–1000 kg
Feed opening
1550 × 1100 mm
Motor
55 / 75 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK HORIZONTAL 1000 ATH — the largest baler in the current ORWAK HORIZONTAL range, designed for very large, continuous streams of cardboard, paper and other suitable materials. Available with a 55 or 75 kW drive to match site throughput requirements.
Key benefits
- 100 t compaction force;
- 11–25 t/h throughput depending on motor version and material;
- automatic start and continuous feeding;
- automatic horizontal tying;
- adjustable bale length;
- 400–1000 kg cardboard bales;
- oil cooler and bale counter;
- suited to large-scale centralised waste handling.
Who is it for?
1000 ATH serves large recycling, logistics, manufacturing and waste handling sites requiring continuous high throughput and automated bale formation.
How it works
Waste is fed continuously into the hopper by conveyor, bin lifter or another engineered feeding solution. A photocell automatically starts the compaction cycle, and material is compressed in the channel.
At the set bale length, 1000 ATH automatically ties the bale horizontally with four wires and ejects it for collection. The 55 kW version provides lower hourly throughput; the 75 kW version provides higher throughput.
Technical specifications
| Specification | 1000 ATH 55 kW | 1000 ATH 75 kW |
|---|---|---|
| Compaction force | 100 t | 100 t |
| Feed opening | 1550 × 1100 mm | 1550 × 1100 mm |
| Feed volume | 1,36 m³ | 1,36 m³ |
| Motor | 55 kW / 75 hp | 75 kW / 100 hp |
| Surface pressure | 11,3 kg/cm² | 11,3 kg/cm² |
| Cycles | 3,5/min. | 5/min. |
| Baling channel | 1100 × 800 mm | 1100 × 800 mm |
| Oil tank capacity | 1000 l | 1500 l |
| Machine dimensions excluding bale outlet | 7860 × 4435 × 3060 mm | 7860 × 4435 × 3060 mm |
| Machine weight | 15 000 kg | 15 500 kg |
| Volumetric throughput | 220 m³/h | 320 m³/h |
| Throughput by material density | 11–18 t/h | 16–25 t/h |
| Automatic tying | 4 wires, Ø3.4 mm | 4 wires, Ø3.4 mm |
| Bale dimensions | 1100 × 800 × 800–2150 mm | 1100 × 800 × 800–2150 mm |
| Cardboard bale weight | 400–1000 kg | 400–1000 kg |
Specifications from the official ORWAK HORIZONTAL 1000 ATH datasheet. Bale weight and throughput depend on material and bale length. Official ORWAK datasheet.
