ORWAK WASTE MANAGEMENT EQUIPMENT

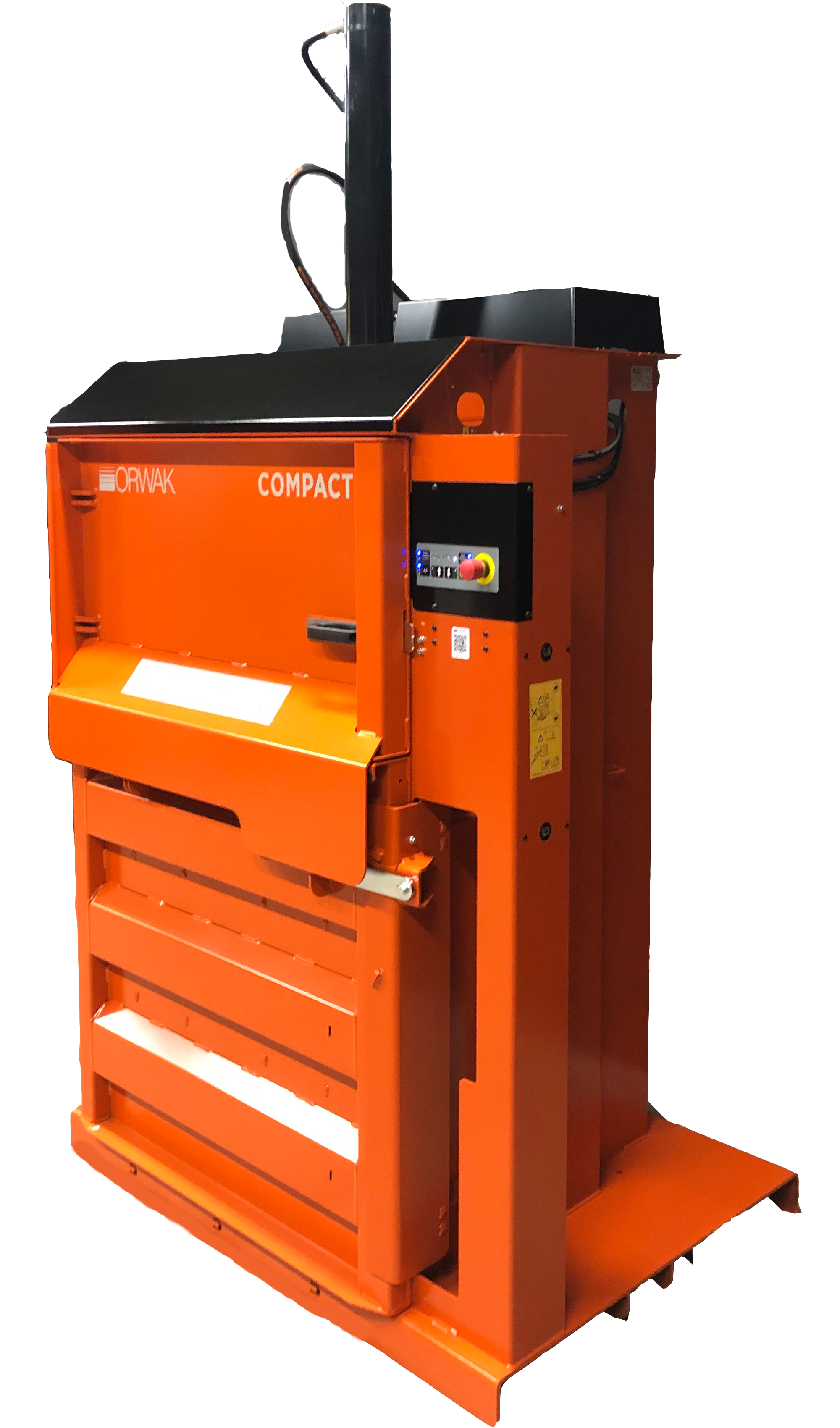

ORWAK 3150
ORWAK COMPACT 3150 — a single-phase vertical baler for cardboard and plastic film, producing cardboard bales up to 150 kg. Bale dimensions are optimised for a Euro pallet.
Compaction force
8 t / 80 kN
Bale weight
Cardboard up to 150 kg · plastic up to 190 kg
Loading opening
1003 × 460 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK COMPACT 3150 — the largest COMPACT model, retaining a compact format while producing substantially heavier bales. Euro-pallet-compatible dimensions simplify storage and transport planning.
Key benefits
- cardboard bales up to 150 kg and plastic bales up to 190 kg;
- bale dimensions optimised for a Euro pallet;
- automatic cycle start when the door closes;
- cardboard or plastic material selection;
- three adjustable bale-height settings;
- semi-automatic bale ejection;
- single-phase 230 V power;
- optional ORWAK Connect remote monitoring.
Who is it for?
3150 suits businesses valuing COMPACT simplicity and single-phase power but needing greater bale capacity and more efficient logistics.
How it works
Waste is loaded into the chamber. Closing the door starts the automatic cycle; the operator selects cardboard or plastic mode and one of three bale heights.
An indicator signals when the bale is ready. Semi-automatic ejection simplifies removal of cardboard bales up to 150 kg and preparation for transport.
Technical specifications
| Compaction force | HP 8 t (80 kN); LP 5 t (50 kN) |
|---|---|
| Loading opening | 1003 × 460 mm |
| Cycle time | 40 s |
| Bale dimensions | 1000 × 800 × 1000 mm |
| Bale weight | Cardboard up to 150 kg; plastic up to 190 kg |
| Machine weight | 720 kg |
| Machine dimensions (A × B × C) | 2546 × 1366 × 1001 mm |
| Additional dimension D | 2013 mm |
| Transport height | 2018 mm |
| Noise level | 62,3 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK COMPACT 3150 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
