ORWAK 3075
The compact ORWAK COMPACT 3075 vertical baler handles small cardboard and film volumes. Bale dimensions support efficient logistics — two bales fit on a Euro pallet.
Compaction force
4 t / 40 kN
Bale weight
Cardboard up to 70 kg · plastic up to 70 kg
Loading opening
704 × 565 mm
Power supply
230 V · single-phase · 10 A
Your enquiry will automatically include the model you are viewing.
About the machine

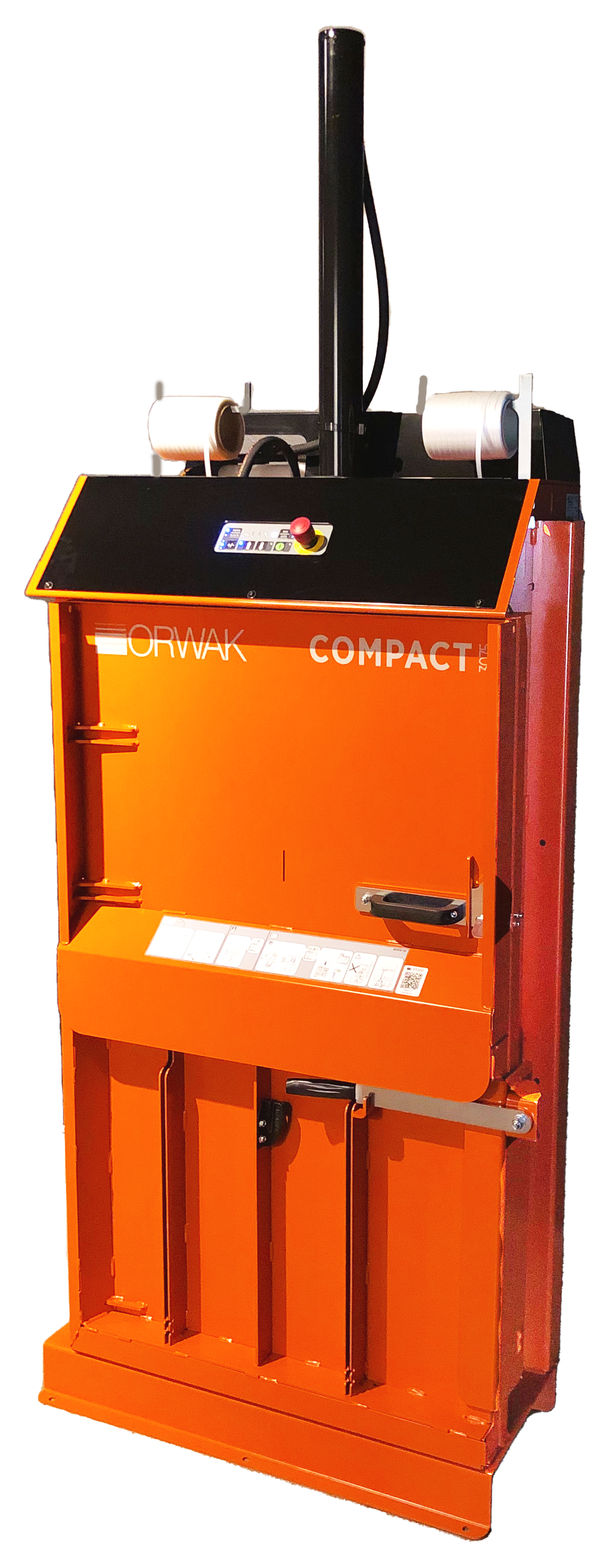

ORWAK COMPACT 3075 — a compact vertical baler for businesses handling small packaging-waste volumes at the point of generation. A small footprint combines with bales up to 70 kg, sized for efficient Euro-pallet transport.
Key benefits
- small footprint;
- automatic cycle start when the door closes;
- cardboard or plastic material selection;
- three adjustable bale-height settings;
- bale-full and service indicators;
- quiet hydraulic operation;
- bale trolley included;
- optional ORWAK Connect remote monitoring.
Who is it for?
3075 suits retail, hotels, restaurants, offices and other sites with low packaging-waste volumes where saving space and convenient bale handling matter.
How it works
Waste is placed in the chamber. Closing the door starts the automatic compaction cycle. The control panel offers cardboard or plastic mode and three bale-height settings.
The bale-full indicator alerts the operator when ready. The included trolley simplifies removal and transport.
Technical specifications
| Compaction force | HP 4 t (40 kN); LP 3 t (30 kN) |
|---|---|
| Loading opening | 704 × 565 mm |
| Cycle time | 40 s |
| Bale dimensions | 700 × 500 × 700 mm |
| Bale weight | Cardboard up to 70 kg; plastic up to 70 kg |
| Machine weight | 277 kg |
| Machine dimensions (A × B × C) | 2350 × 920 × 717 mm |
| Additional dimensions | D: 1460 mm; E: 794 mm |
| Transport height | 1980 mm (on request) |
| Noise level | 62,3 dB(A) |
| Protection rating | IP55 |
| Power supply | Single-phase, 230 V, 50 Hz, 10 A |
Specifications from the official ORWAK COMPACT 3075 datasheet. Bale weight depends on material and compaction conditions. Official ORWAK datasheet.
