ORWAK WASTE MANAGEMENT EQUIPMENT

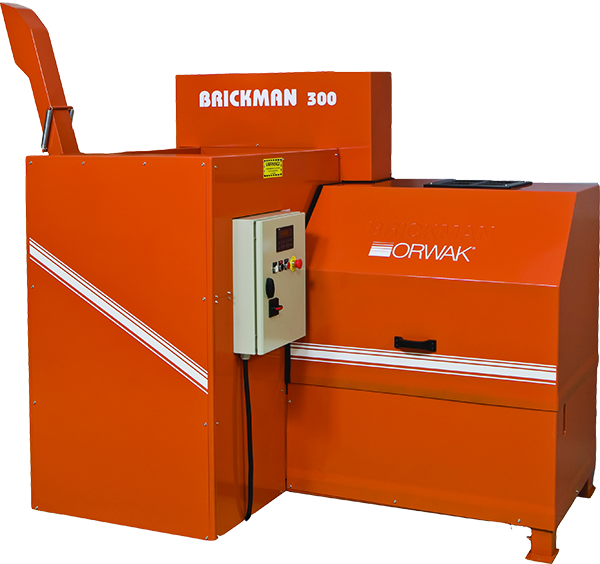

ORWAK BRICKMAN 300
ORWAK BRICKMAN 300 — a compact, fully automatic briquetting press. Cardboard throughput up to 250 kg/h, 25 t force and a 0.75 m³ hopper.
Compaction force
25 t / 250 kN
Cardboard throughput
Up to 250 kg/h
Hopper
0,75 m³
Motor
7,5 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK BRICKMAN 300 — a compact, fully automatic briquetting press converting larger volumes of cardboard and suitable materials into small, dense briquettes. It can be loaded while running, and briquettes need no tying.
Key benefits
- cardboard throughput up to 250 kg/h;
- 25 t compaction force;
- 0.75 m³ hopper;
- briquettes need no tying;
- compact design for installation near waste generation;
- 300 versions available for different materials.
Who is it for?
BRICKMAN 300 suits businesses with continuous cardboard or suitable recyclable streams that do not require 1200C or 2000C throughput.
How it works
Material is continuously loaded into the 0.75 m³ hopper while the press operates. It automatically compresses material into briquettes with an 80 × 80 mm cross-section; length depends on the material and process.
Finished briquettes are ejected for collection or transport without additional tying.
Technical specifications
| Machine weight | 1600 kg |
|---|---|
| Compaction force | 25 t (250 kN) |
| Pressure | Up to 500 kg/cm² |
| Hopper | 0,75 m³ |
| Briquette size | 80 × 80 × 100–300 mm |
| Density | Up to 600 kg/m³ |
| Noise level | 68 dB(A) |
| Protection rating | IP55 |
| Power supply | 400 V, three-phase, 50 Hz |
| Motor | 7,5 kW |
| Fuse | 25 A, slow-blow |
Specifications from the official ORWAK BRICKMAN 300 Standard datasheet. Official ORWAK datasheet.
