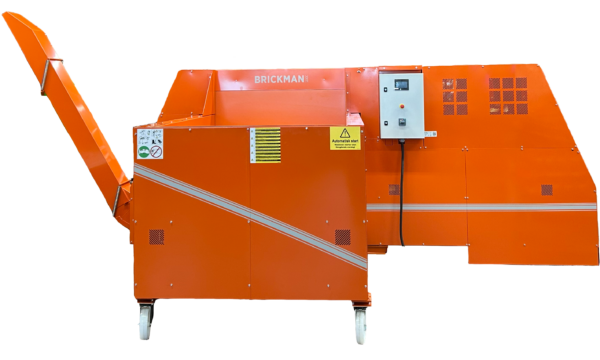

ORWAK BRICKMAN 2000C
ORWAK BRICKMAN 2000C — a very high-throughput automatic briquetting press. Up to 1500 kg/h of cardboard and 1250 kg/h of PET.
Compaction force
25 t / 250 kN
Cardboard throughput
Up to 1500 kg/h
Hopper
2 m³
Motor
15 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK BRICKMAN 2000C — the highest-throughput automatic briquetting press in the current BRICKMAN family, for very large cardboard and empty PET bottle streams.
Key benefits
- cardboard throughput up to 1500 kg/h;
- PET throughput up to 1250 kg/h;
- 2 m³ hopper;
- 25 t compaction force;
- cyclone for a more compact hydraulic system;
- quiet hydraulic unit as standard;
- briquettes need no tying.
Who is it for?
2000C serves very large distribution, logistics, recycling and retail sites requiring continuous automated processing of high cardboard or PET volumes.
How it works
Large cardboard or empty PET streams are fed continuously into the 2 m³ hopper. The press can be loaded while running, automatically compressing material into briquettes with a 200 × 200 mm cross-section.
Briquettes are ejected without additional tying and can be directed into an integrated container or collection system.
Technical specifications
| Machine weight | 3800 kg |
|---|---|
| Compaction force | 25 t (250 kN) |
| Pressure | Up to 62 kg/cm² |
| Hopper | 2 m³ |
| Cardboard throughput | Up to 1500 kg/h |
| PET throughput | Up to 1250 kg/h |
| Briquette size | 200 × 200 × 100–300 mm |
| Density | Up to 400 kg/m³ |
| Noise level | 65 dB(A) |
| Protection rating | IP55 |
| Power supply | 400 V, three-phase, 50 Hz |
| Motor | 15 kW |
| Fuse | 40 A, slow-blow |
Specifications from the official ORWAK BRICKMAN 2000C datasheet. Official ORWAK datasheet.
