ORWAK WASTE MANAGEMENT EQUIPMENT

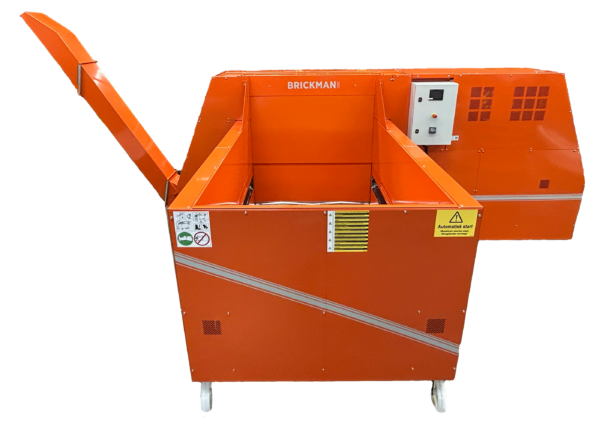

ORWAK BRICKMAN 1200C
ORWAK BRICKMAN 1200C — an automatic high-throughput briquetting press. Up to 1100 kg/h of cardboard and 900 kg/h of PET, with a 2 m³ hopper.
Compaction force
25 t / 250 kN
Cardboard throughput
Up to 1100 kg/h
Hopper
2 m³
Motor
11 kW
Your enquiry will automatically include the model you are viewing.
About the machine
ORWAK BRICKMAN 1200C — a high-throughput, fully automatic briquetting press for large cardboard and empty PET bottle streams. It can be loaded while running, and finished briquettes need no tying.
Key benefits
- cardboard throughput up to 1100 kg/h;
- PET throughput up to 900 kg/h;
- 2 m³ hopper;
- 25 t compaction force;
- cyclone for a more compact hydraulic system;
- quiet hydraulic unit as standard.
Who is it for?
1200C serves distribution, logistics, retail and recycling sites with high cardboard or PET volumes requiring continuous automatic compaction.
How it works
Cardboard or empty PET bottles are continuously fed into the 2 m³ hopper. The press can be loaded while running, automatically compressing and extruding material into briquettes with a 200 × 200 mm cross-section.
Finished briquettes need no tying and can be directed straight into a container or other collection system.
Technical specifications
| Machine weight | 3800 kg |
|---|---|
| Compaction force | 25 t (250 kN) |
| Pressure | Up to 62 kg/cm² |
| Hopper | 2 m³ |
| Cardboard throughput | Up to 1100 kg/h |
| PET throughput | Up to 900 kg/h |
| Briquette size | 200 × 200 × 100–300 mm |
| Density | Up to 400 kg/m³ |
| Noise level | 65 dB(A) |
| Protection rating | IP55 |
| Power supply | 400 V, three-phase, 50 Hz |
| Motor | 11 kW |
| Fuse | 40 A, slow-blow |
Specifications from the official ORWAK BRICKMAN 1200C datasheet. Official ORWAK datasheet.
